Elbow Stops Overview
Elbow Stops
Elbow supports first and foremost prevent the upper extremity (UE) from sliding back off of the armrest during tilt operation. Also, they provide a positioning reference point posteriorly to allow caregivers & users to know where the UE should be positioned on the armrest.
With a 3in (7.62cm) x 10in (25.40cm) pad, elbow stops provide lateral support to keep the forearm positioned on the armrest (notably useful on uneven or bumpy terrain).

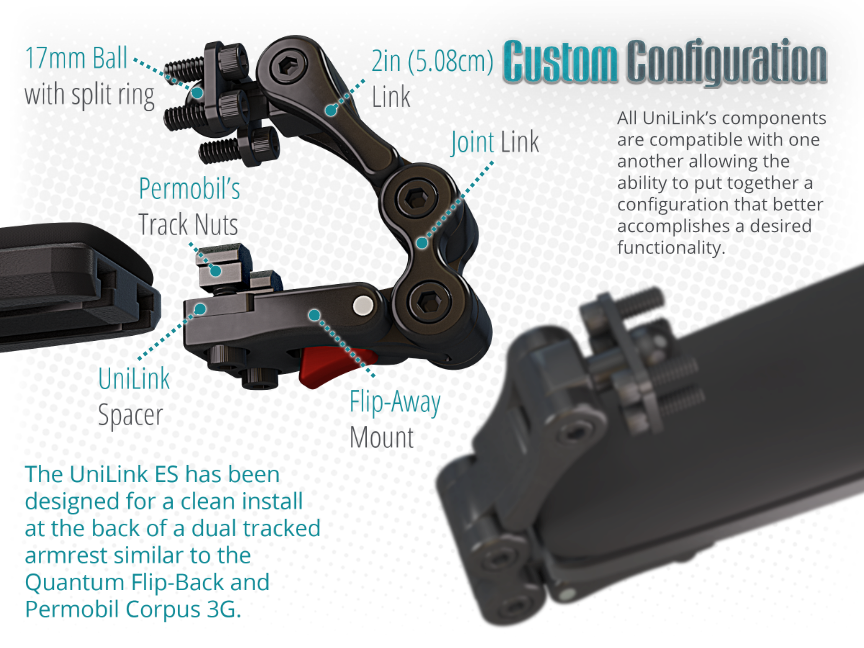

The UniLink is designed to be safely positioned behind a dual-tracked armrest to avoid collision with door frames and other obstacles, similar to Permobil's Corpus 3G and Quantum Rehab's Flip‑Back armrests.

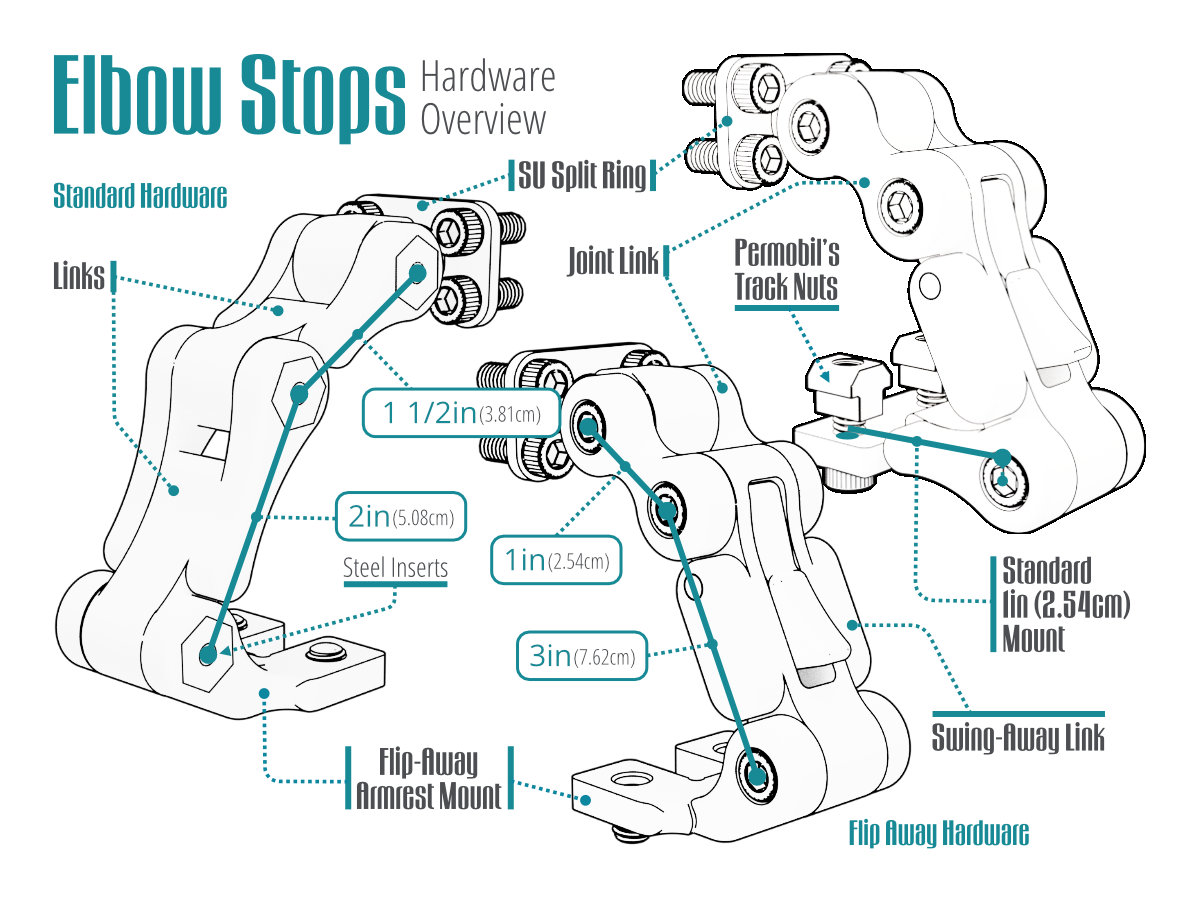

Hardware General Configuration
Elbow stops are built mostly of black anodized aluminum but each joint has an insert made out of steel. Every link adjustment point has the ability to rotate up to 258° with unlimited travel offering fine-tunning capabilities.
Flip-Away Configurations
The Flip-Away hardware allows you to move the hardware out of the way without the need of reconfiguring your set up. A red anondized aluminum button makes it easy to find the lock. Important Note Make sure the lock is on before adjusting the hardware.
When the Flip-Away is set straight, it rotates 142°. Depending on the configuration, the amount of travel can increase or decrease.
Quantum Rehab Flip-Back Armrest

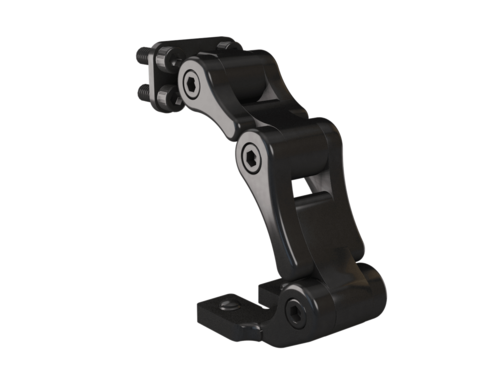

UETB4021FL-Q
UETB4021FL-Q|UETB4021FR-Q|UETB4213SL-Q|UETB4213SR-Q: UniLink Fixed Left Elbow Stop Hardware for Flip-Back ArmrestUniLink Fixed Left Elbow Stop Hardware for Flip-Back Armrest

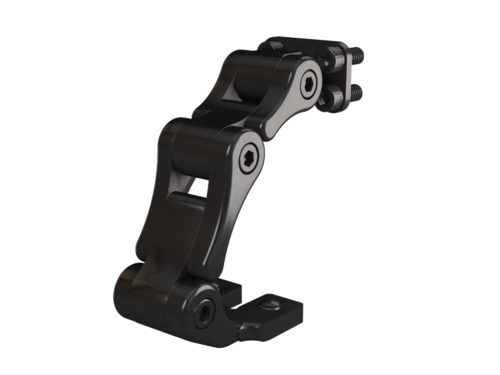

UETB4021FR-Q
UETB4021FL-Q|UETB4021FR-Q|UETB4213SL-Q|UETB4213SR-Q: UniLink Fixed Right Elbow Stop Hardware for Flip-Back ArmrestUniLink Fixed Right Elbow Stop Hardware for Flip-Back Armrest

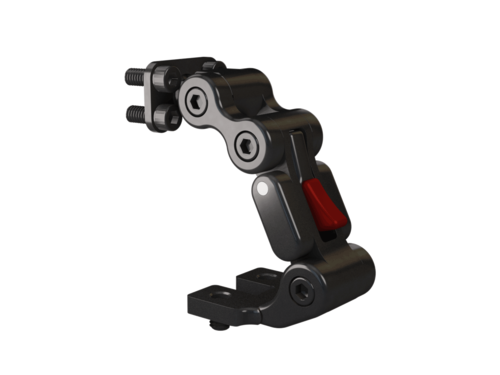

UETB4213SL-Q
UETB4021FL-Q|UETB4021FR-Q|UETB4213SL-Q|UETB4213SR-Q: UniLink Swing Away Left Elbow Stop Hardware for Flip-Back ArmrestUniLink Left Swing Away Elbow Stop Hardware for Flip-Back Armrest
General Offerings1
UE000213SL
Flip Away Elbow Block Link Set (Left), mount not included.
UE000213SR
Flip Away Elbow Block Link Set (Right), mount not included.
General Offerings Mounts

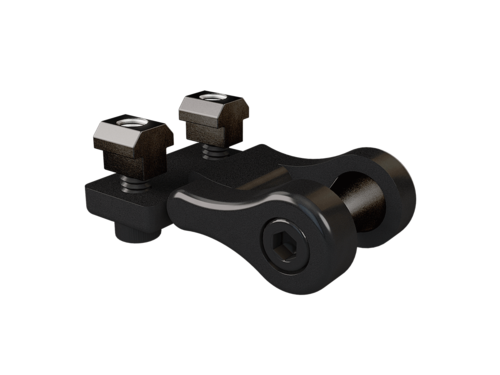

UEPRMTRNFL
UEPRMTRNFL|UEPRMTRNFR|UESTDTRNFL|UESTDTRNFR|UETB4MNTFL-Q|UETB4MNTFR-Q: UniLink 1in Left Mount (Permobil)UniLink 1in. (2.54cm) Left Mount with Permobil Track Nuts

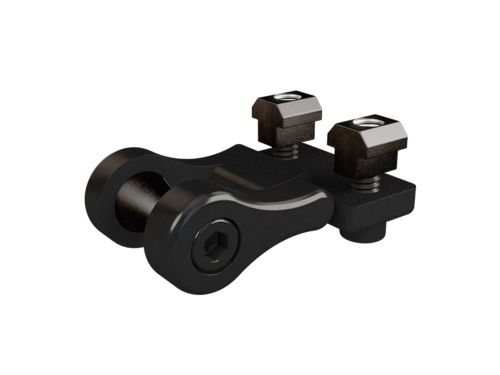

UEPRMTRNFR
UEPRMTRNFL|UEPRMTRNFR|UESTDTRNFL|UESTDTRNFR|UETB4MNTFL-Q|UETB4MNTFR-Q: UniLink 1in Right Mount (Permobil)UniLink 1in. (2.54cm) Right Mount with Permobil Track Nuts

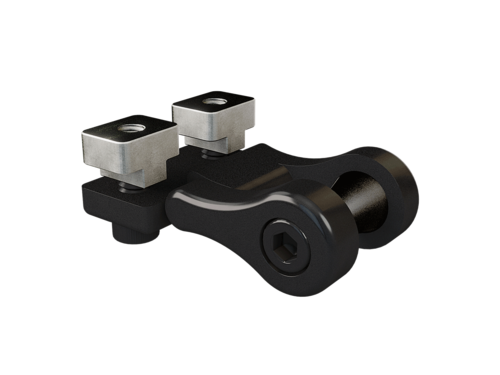

UESTDTRNFL
UEPRMTRNFL|UEPRMTRNFR|UESTDTRNFL|UESTDTRNFR|UETB4MNTFL-Q|UETB4MNTFR-Q: UniLink 1in Left Mount (Standard)UniLink 1in (2.54cm) Left Mount (Standard)

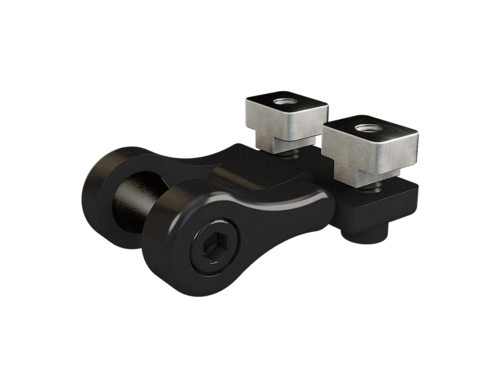

UESTDTRNFR
UEPRMTRNFL|UEPRMTRNFR|UESTDTRNFL|UESTDTRNFR|UETB4MNTFL-Q|UETB4MNTFR-Q: UniLink 1in Right Mount (Standard)UniLink 1in (2.54cm) Right Mount (Standard)

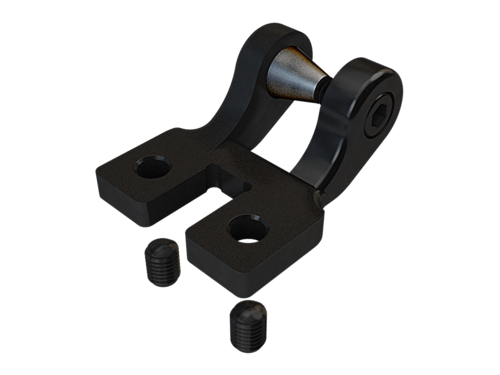

UETB4MNTFL-Q
UEPRMTRNFL|UEPRMTRNFR|UESTDTRNFL|UESTDTRNFR|UETB4MNTFL-Q|UETB4MNTFR-Q: UniLink Fixed Elbow Stop Mount for Flip-Back Armrests (Left)UniLink Fixed Elbow Stop Mount for Flip-Back Armrests (Left)
- Do not include mount.
- Mounts are designed for dual-track armrests for optimal set up.
Set Up Warning Some mounts are designed to mount in the back of a dual-track armrests for optimal set up. If it is set up to offset on the side of the wheelchair the hardware will add width to the total width of the PWC frame width and can cause damage to structures and door frames if good driving practices are not followed and the extra offset considered.

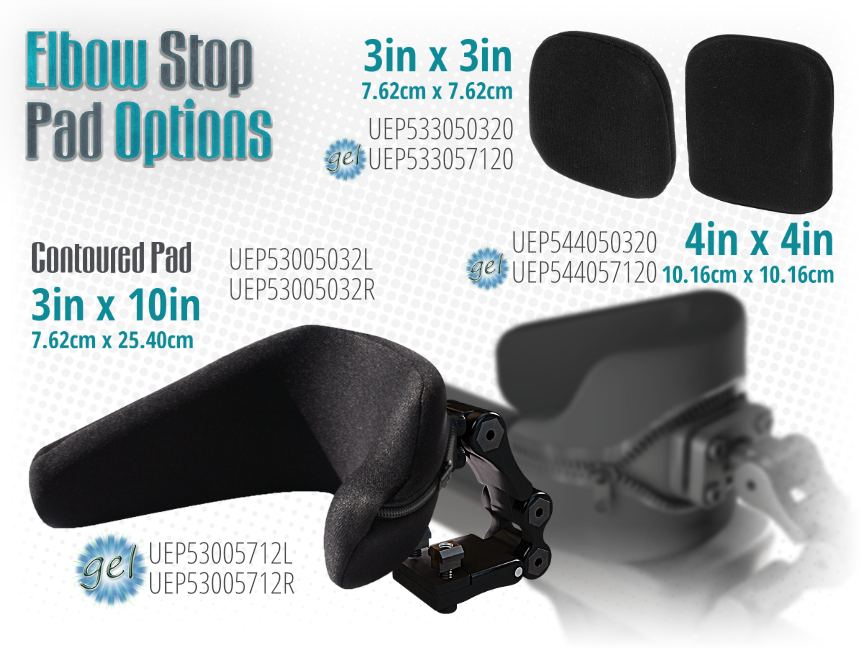

Elbow Stop Pad Options
Reconfigured for UniLink
UniLink Elbow pads have been updated to maintain consistency through the UniLink family. All pads will use metric threads. Original pads were SAE.
Pads are available in 3in (7.62cm) x 3in (7.62cm), 4in (10.16cm) x 4in (10.16cm) or contoured 3in (7.62cm) x 10in (25.40cm), either standard (Crosslinked) foam or non-toxic gel.
Our gel pads use a Glycerine/Mineral Oil based gel that passes flammability testing per RESNA WC-1 and international requirements, as well as CAL Prop 65, REACH and RoHS testing for Non-Known Harmful Chemical use. The gel has little to no-odor compared with other gels in the market.
Standard Pads
UEP53005032L
UniLink Left 3in (7.62cm) x 10in (25.40cm) Elbow Pad with Neoprene cover and Metric threads
UEP53005032R
UniLink Right 3in (7.62cm) x 10in (25.40cm) Elbow Pad with Neoprene cover and Metric threads
UEP533050320
UniLink 3in (7.62cm) x 3in (7.62cm) Elbow Pad with Neoprene cover and Metric Threads
Gel Pads
UEP53005712L
UniLink Left 3in (7.62cm) x 10in (25.40cm) Elbow Gel Pad with Neoprene cover and Metric threads
UEP53005712R
UniLink Right 3in (7.62cm) x 10in (25.40cm) Elbow Gel Pad with Neoprene cover and Metric threads
UEP533057120
Uni Link 3in (7.62cm) x 3in (7.62cm) Gel Elbow Pad, Neoprene, Metric
Contoured Pad
The Contoured Pad (3in (7.62cm) x 10in (25.40cm) offers a more contoured support that wraps around the elbow. The contoured pad will provide some medial, but mostly lateral support of the joint. The metal base is malleable so that the pad can be contoured to best match the body and/or arm pad shape.

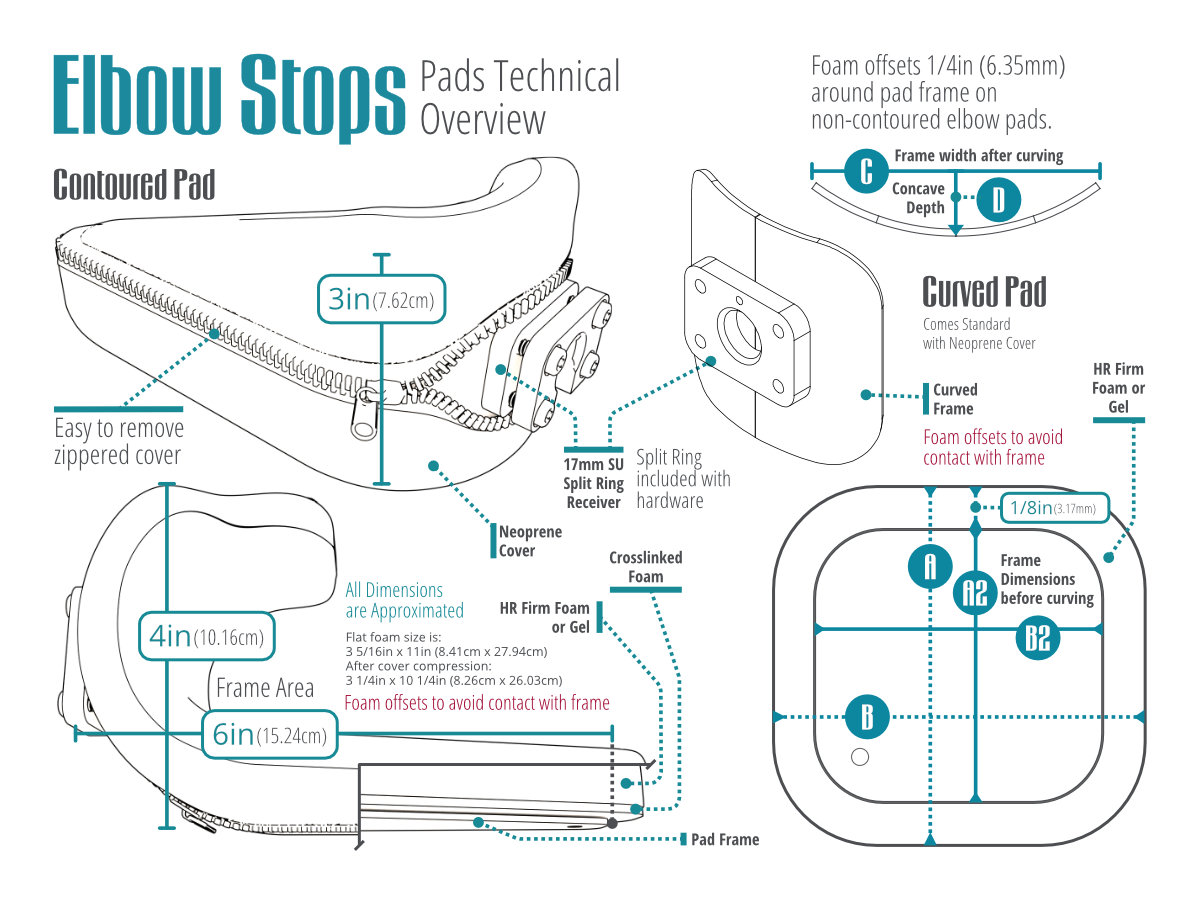

UniLink Elbow Stops Non-Contoured Pad Dimensions and Specifications
| Part Number | A | B | A2 | B2 | C | D | Cushion |
|---|---|---|---|---|---|---|---|
| UEP533050320 | 3 1/4in (8.26cm) | 3 1/4in (8.26cm) | 3in (7.62cm) | 3 5/32in (8.04cm) | 3in (7.62cm) | 1/2in (12.70mm) | Crosslinked |
| UEP544050320 | 4 1/4in (10.80cm) | 4 1/4in (10.80cm) | 3in (7.62cm) | 3 5/32in (8.04cm) | 3in (7.62cm) | 1/2in (12.70mm) | Crosslinked |
| Gel Options | |||||||
| UEP533057120 | 4 1/4in (10.80cm) | 4 1/4in (10.80cm) | 3in (7.62cm) | 3 5/32in (8.04cm) | 3in (7.62cm) | 1/2in (12.70mm) | Non-Toxic Gel |
| UEP544057120 | 4 1/4in (10.80cm) | 4 1/4in (10.80cm) | 3in (7.62cm) | 3 5/32in (8.04cm) | 3in (7.62cm) | 1/2in (12.70mm) | Non-Toxic Gel |
IMPORTANT NOTEDimension tables do not display properly on small screens. Download UniLink Elbow Stops Non-Contoured Pad Dimensions and Specifications table on your device below.
