Overview
Overview
UniLink Pelvic/Thigh Hardware
The UniLink Pelvic/Thigh Solutions are used to facilitate proper positioning of the pelvis area.
These can be used when the thighs are abducted or windswept and also aid in guiding the hips to a proper position.
The hardware allows for multiple points of adjustment to allow for a perfect fit.

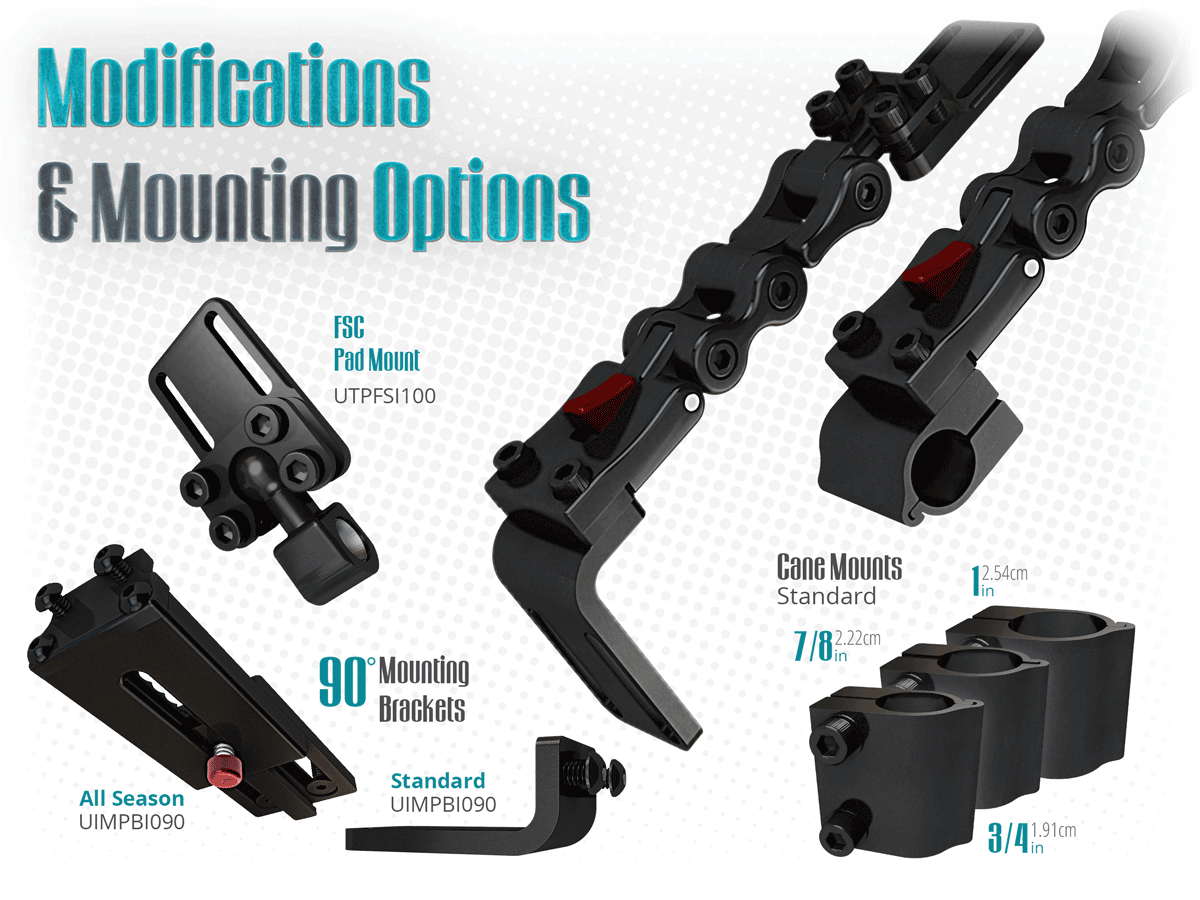

Mounting and Modification Options
There are several mounting options avaialble:
- Cane Mounts: 3/4in (19.05mm), 7/8in (22.23mm) and 1in (2.54cm)
- Mounting Bracket: 90° Standard Bracket
- All-Seasons Bracket: 90° Standard AS Bracket
The traditional style hardware can be modified with the Full Surface Contact (FSC) option for a more personalized fit.
Pad Options
UniLink Pelvic/Thigh Pads come in two styles: Track Pads and Traditional Style.
The track pad style gives you unlimited configurations and pad rotation.
The traditional pads configuration is the same as the old style pads, but with 1in (2.54cm) spacing with metric threads.
Standard Style
Standard Hardware Style

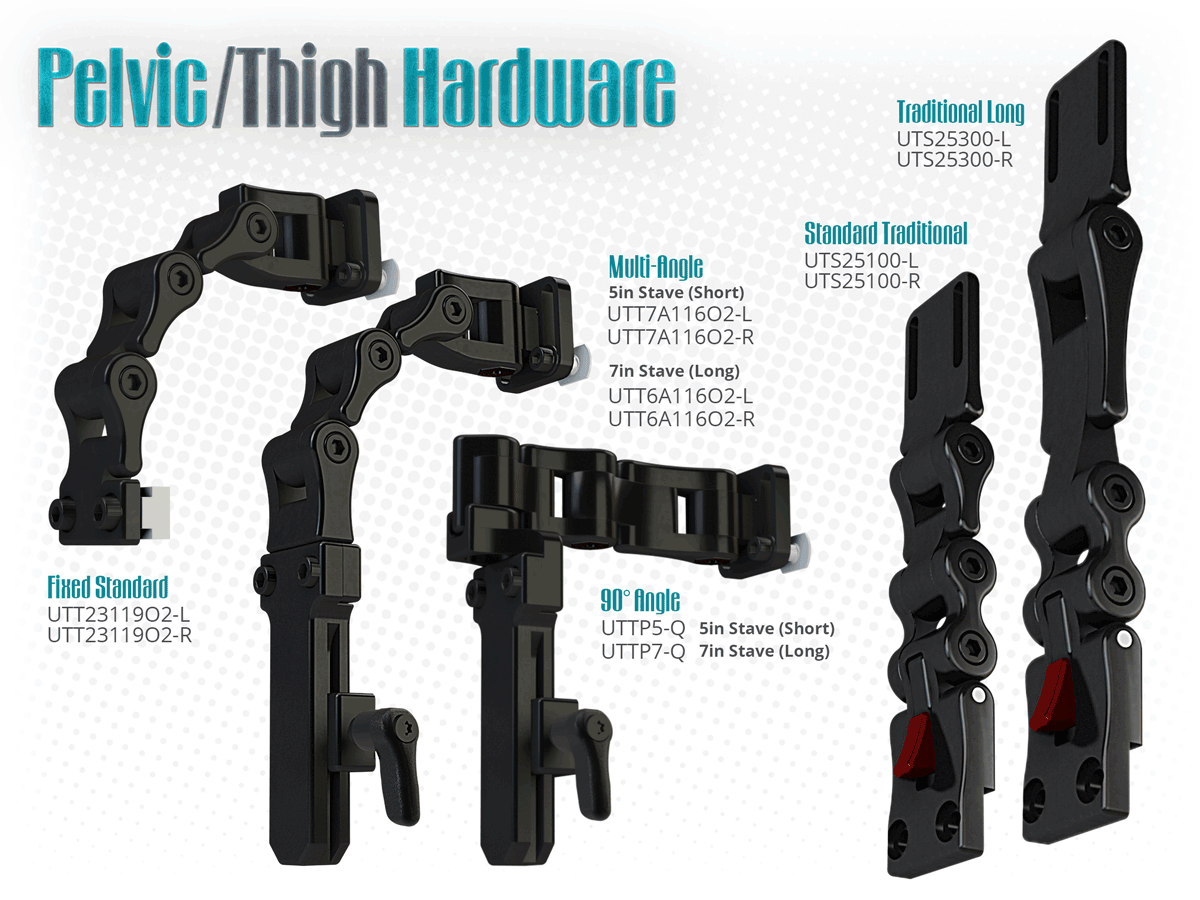

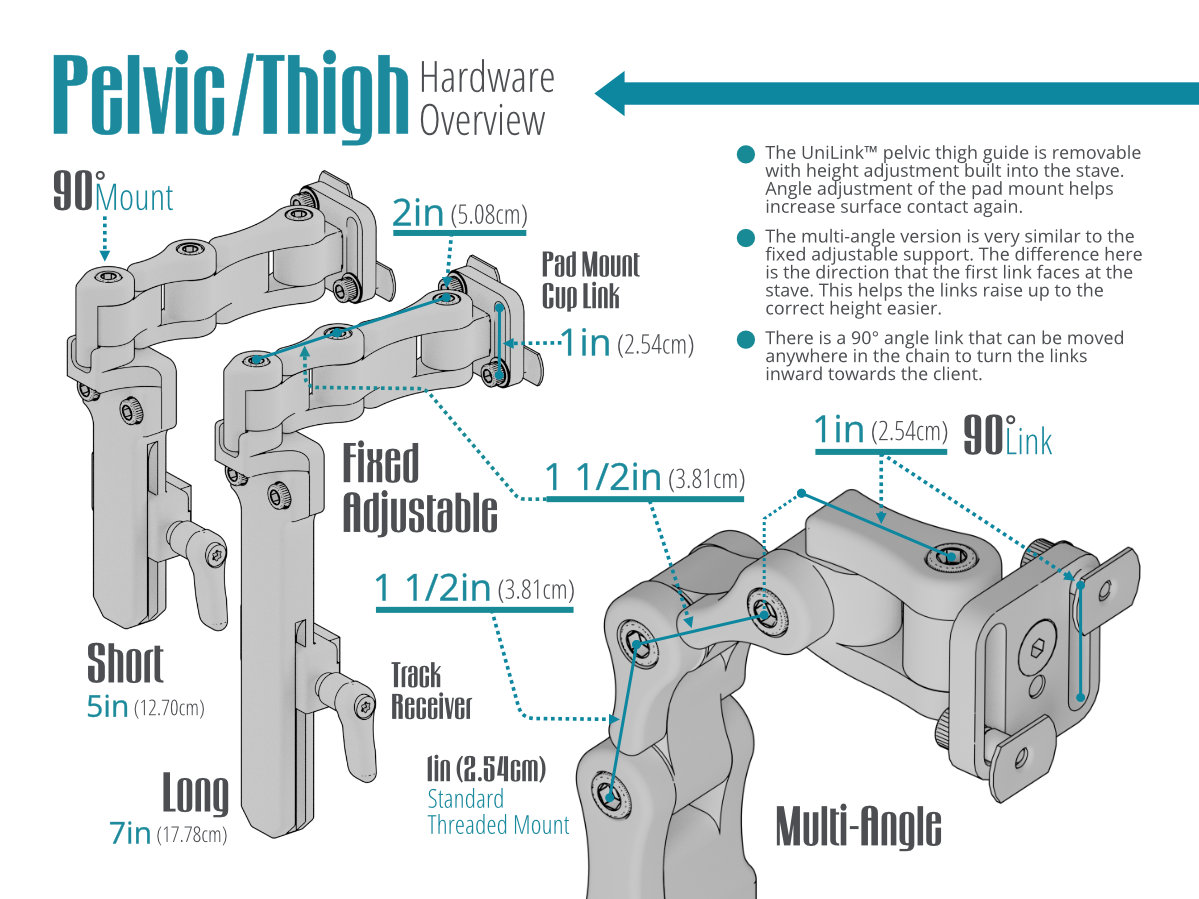

Hardware Configurations Overview
- The UniLink pelvic/thigh guide is removable with height adjustment built into the stave. Angle adjustment of the pad mount helps increase surface contact again.
- The multi-angle version is very similar to the fixed adjustable support. The difference here is the direction that the first link faces at the stave. This helps the links raise up to the correct height easier.
- There is a 90° angle link that can be moved anywhere in the chain to turn the links inward towards the client.

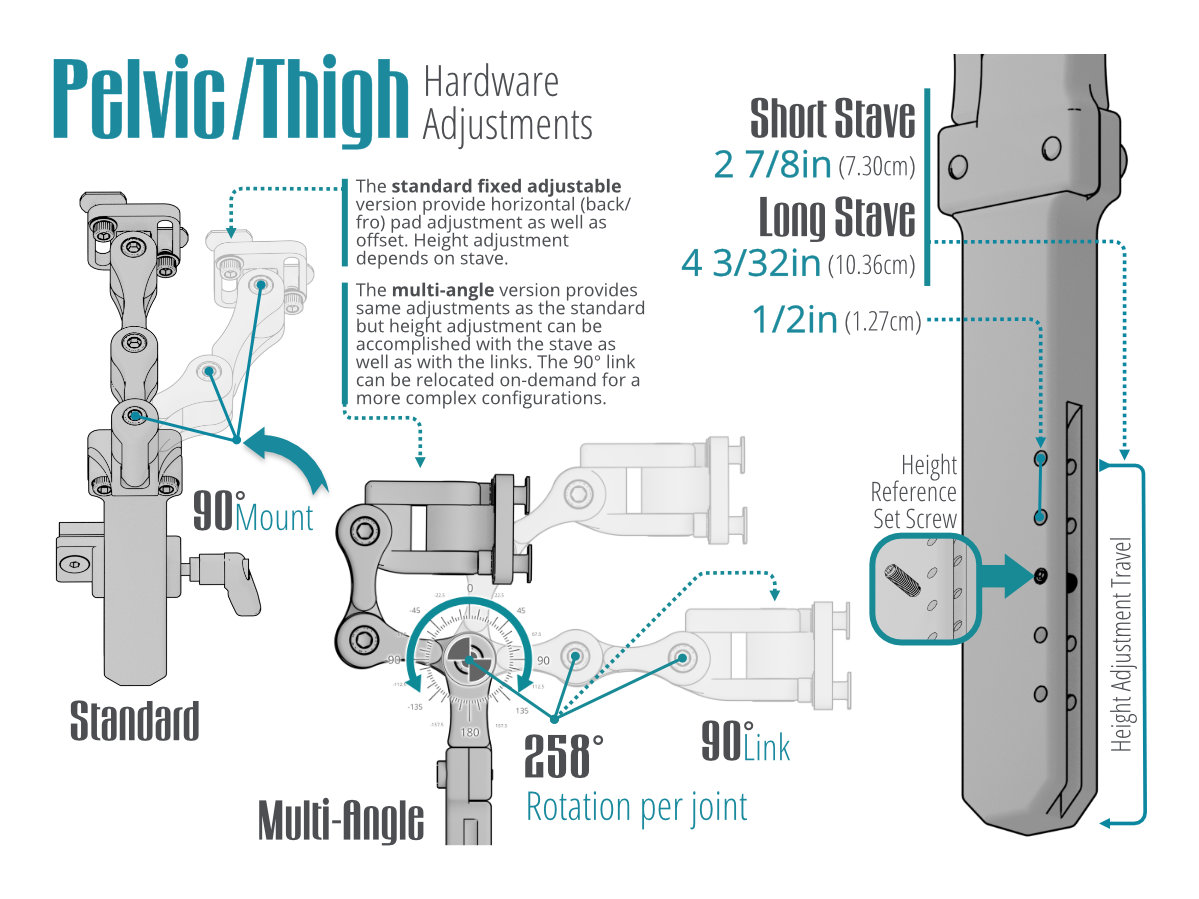

Hardware Adjustments
- The standard fixed adjustable version provides horizontal (back/fro) pad adjustment as well as offset. Height adjustment depends on stave.
- The multi-angle version provides same adjustments as the starndard but height adjustment can be accomplished with the stave as well as with the links. The 90° link can be relocated on-demand for a more complex configuration.
Height Adjustable Multi-Angle (Long)
Height Adjustable Multi-Angle (Short)
UTT7A116O2-L
UniLink Short 5in (12.70cm) Multi-Angle Thigh Guide Left Side
Standard
UTT6A1260000
UniLink Thigh Guide tall 7in (17.78cm) height-adjustable and removable
Quantum Rehab Bundle
UTTP5-Q
UniLink Pelvic/Thigh Track Mounted Package with 5in (12.70cm) Stave and Quantum Rehab Receiver
Includes Track Receiver
PWC Direct Track Nut Mounts
UT800000-Q
UniLink Hip Guide Receiver for Quantum PWC
UIMTNI001
UniLink 1in (2.54cm) T-Slot Mouning
UIMTNIPRM
UniLink Track Mount for Permobil PWC Tracks
Traditional Style
Traditional Hardware Style
UTS25100-L
UniLink Traditional Left Flip Away Thigh Guide
UTS25100-R
UniLink Traditional Right Flip Away Thigh Guide
UTS25300-L
UniLink Traditional Long Left Flip Away Thigh Guide

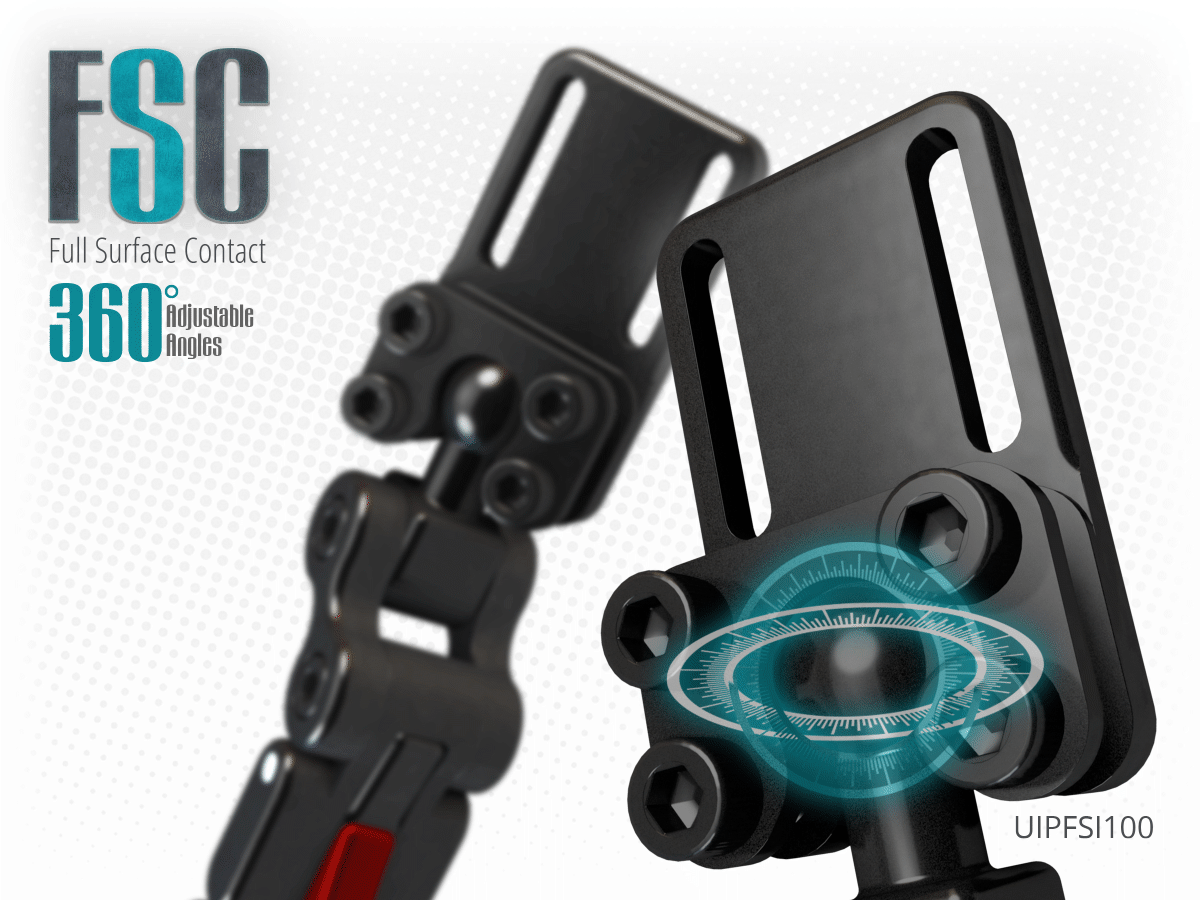

Full Surface Contact (FSC)
The Pelvic/Thigh hardware can be modified with the FSC. The FSC adjusts to better rotate pad to the end user's body shape. It has an adaptability capacity up to 360° on most angles. The FSC operates as the hand and wrist, for a personal close fit.

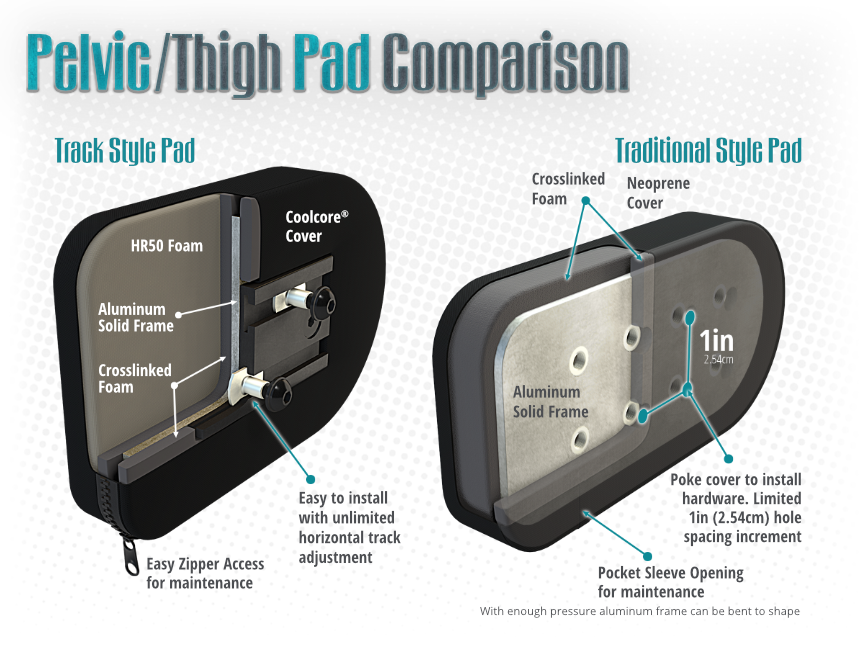

Pad Options

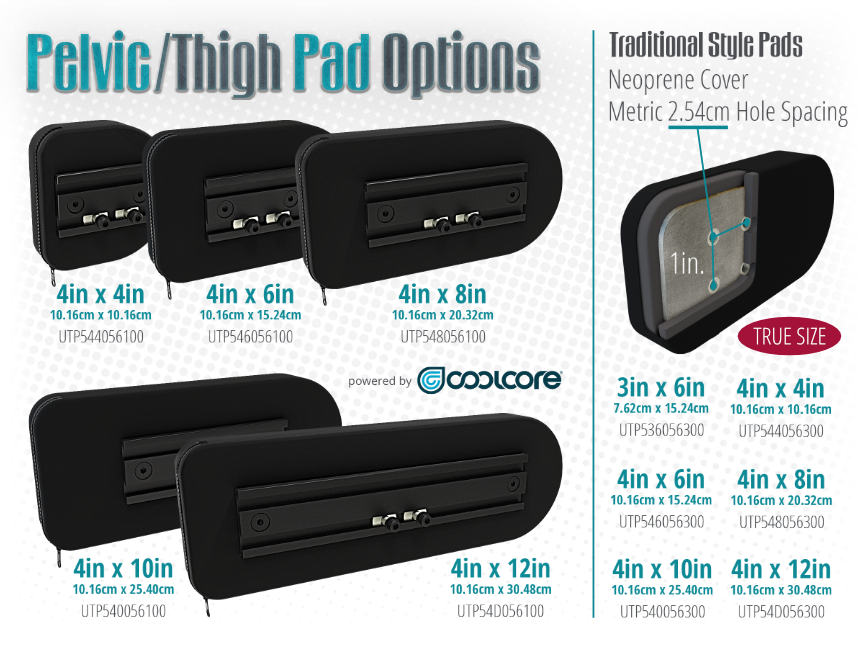

Pelvic/Thigh Pad Options

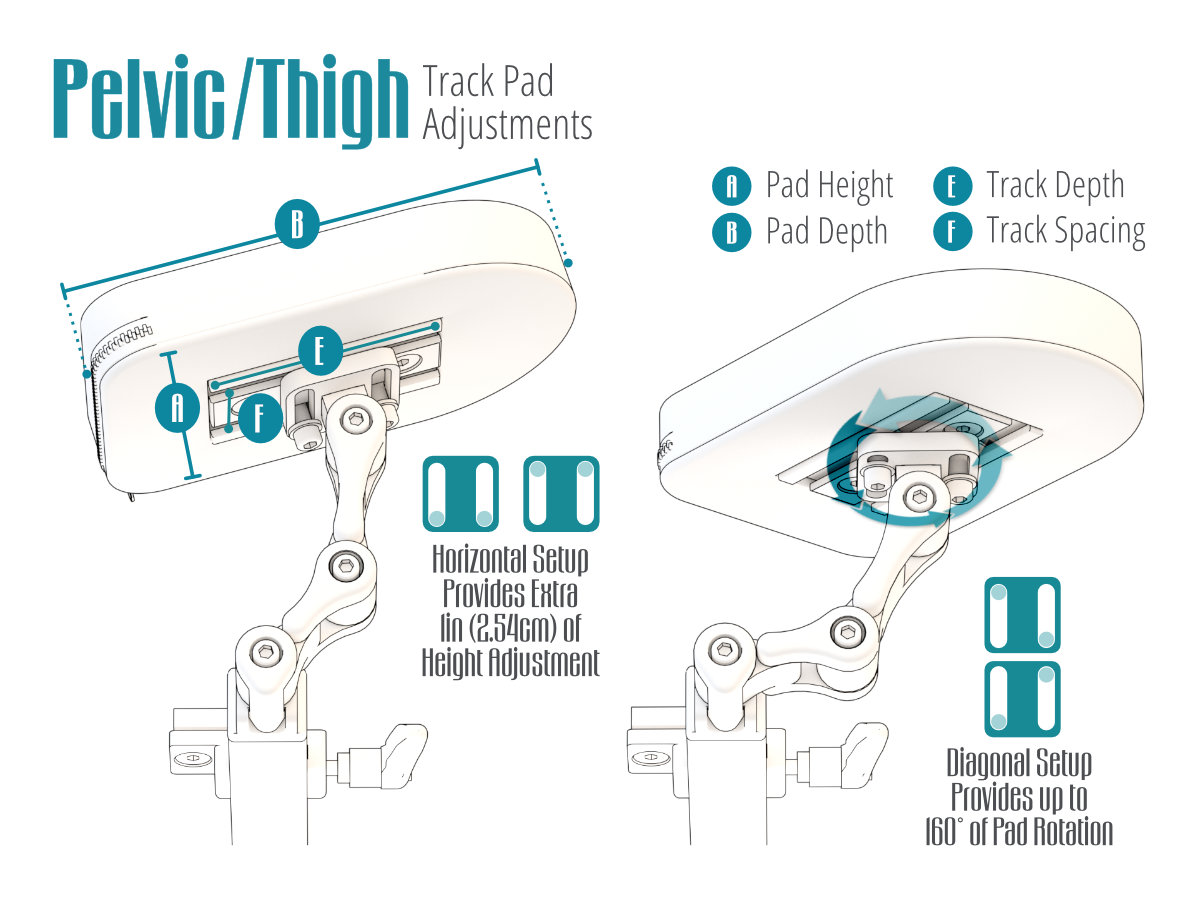

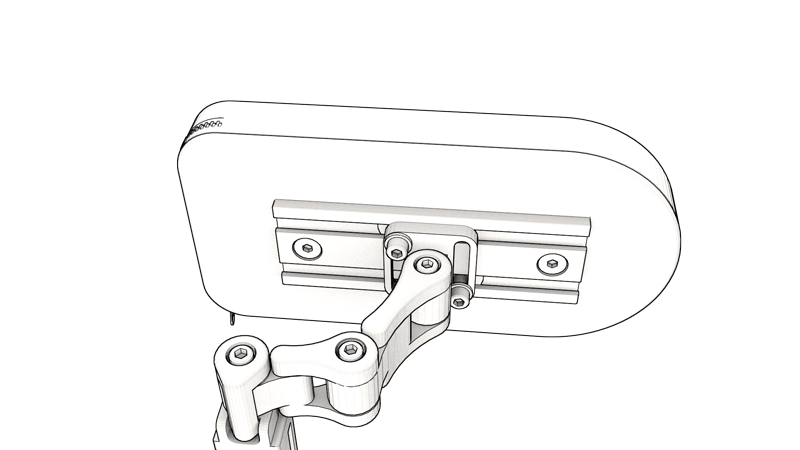

Track Pads can rotate up to 160°
Track Pads
Track pads come in 5 diferent sizes with a track on the rear side. Made out of an Aluminum base, a dual-layer foam set up composed of Crosslinked EVA and HR50 and Coolcore® cover. Also available as gel option. Tracks pads can rotate up to 160°
Traditional Pads Reconfigured for UniLink
UniLink uses the traditional pads that have been modifed to use metric as well be true to the size which is labeled as. If the pad is labeled 3in (7.62cm) x 5in (12.70cm) then the final product will be approximately that size. A standard custom pad is available.

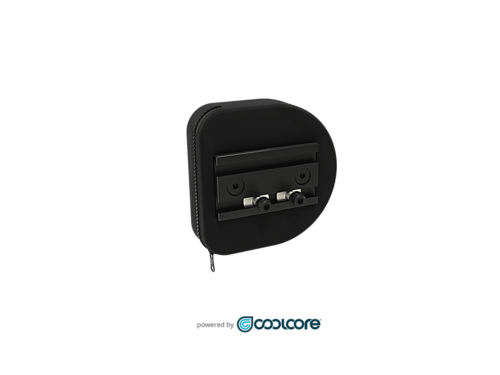

Standard Track Pad
UTP544056100
UTP544056100|UTP546056100|UTP548056100|UTP540056100|UTP54D056100: UniLink Pelvic/Thigh Track Pad 4in. x 4in.UniLink Pelvic/Thigh Pad 4in.(10.16cm) x 4in.(10.16cm) comes with Coolcore cover.

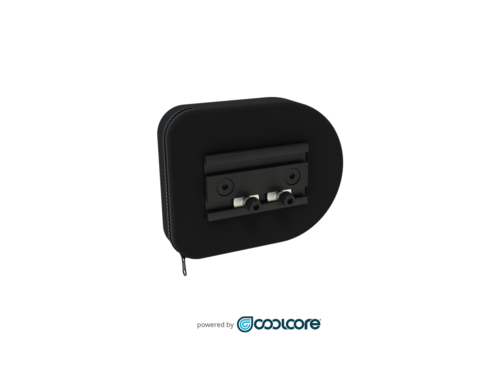

UTP546056100
UTP544056100|UTP546056100|UTP548056100|UTP540056100|UTP54D056100: UniLink 4in x 6in Pelvic/Thigh Track PadUniLink 4in (10.16cm) x 6in (15.24cm) Pelvic/Thigh Track Pad, Metric, 1in (2.54cm) Track Spacing

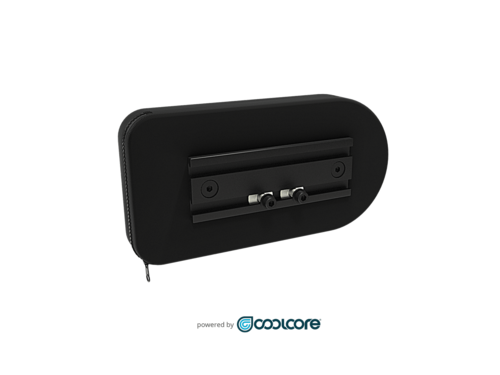

UTP548056100
UTP544056100|UTP546056100|UTP548056100|UTP540056100|UTP54D056100: UniLink Pelvic/Thigh Track Pad 4in. x 8in.UniLink Pelvic/Thigh Track Pad 4in.(10.16cm) x 8in.(20.32cm) comes with Coolcore cover.

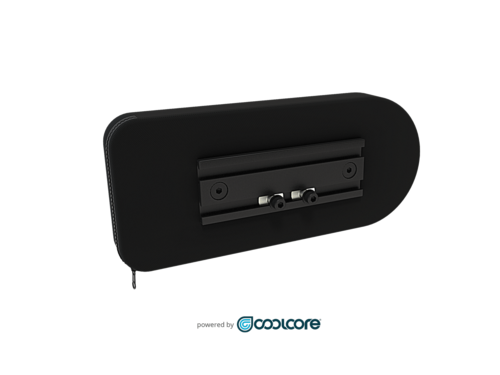

UTP540056100
UTP544056100|UTP546056100|UTP548056100|UTP540056100|UTP54D056100: UniLink 4in x 10in Pelvic/Thigh Track PadUniLink 4in (10.16cm) x 10in (25.40cm) Pelvic/Thigh Track Pad, Metric, 1in (2.54cm) Track Spacing, comes with Coolcore cover.
Traditional Style Pad

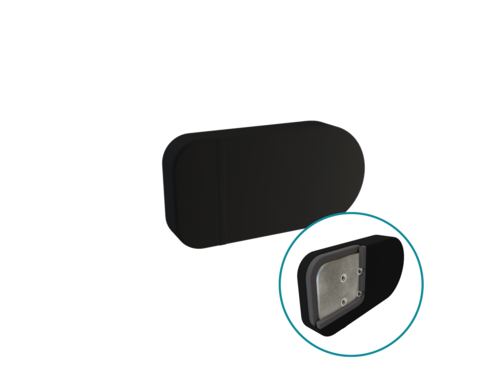

UTP536050300
UTP536050300|UTP544050300|UTP548050300|UTP540050300|UTP54D050300: UniLink 3in x 6in Metric Pelvic/Thigh PadUniLink 3in (7.62cm) x 6in (15.24cm) Pelvic/Thigh Pad, Metric, 1in (2.54in) Spacing

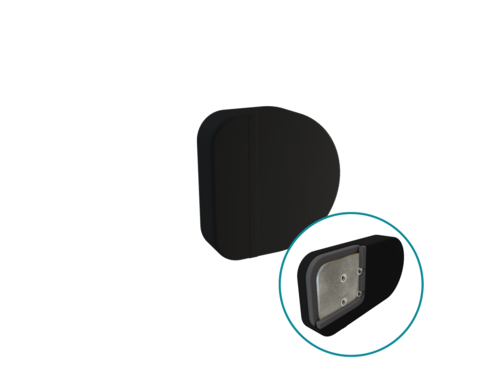

UTP544050300
UTP536050300|UTP544050300|UTP548050300|UTP540050300|UTP54D050300: UniLink 4in x 4in Metic Pelvic/Thigh PadUniLink 4in (10.16cm) x 4in (10.16cm) Pelvic/Thigh Pad, Metric, 1in (2.54cm) Spacing

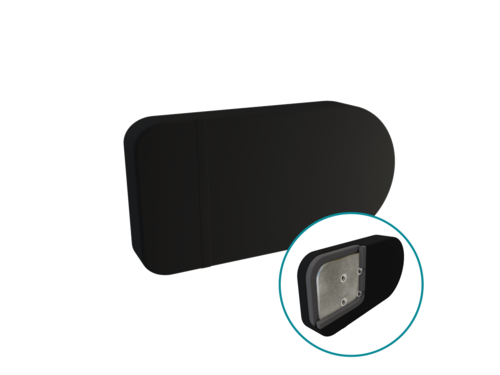

UTP548050300
UTP536050300|UTP544050300|UTP548050300|UTP540050300|UTP54D050300: UniLink 4in x 8in Metic Pelvic/Thigh PadUniLink 4in (10.16cm) x 8in (20.32cm) Pelvic/Thigh Pad, Metric, 1in (2.54cm) Spacing

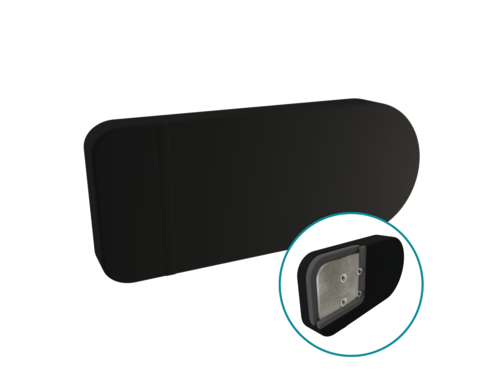

UTP540050300
UTP536050300|UTP544050300|UTP548050300|UTP540050300|UTP54D050300: UniLink 4in x 10in Metic Pelvic/Thigh PadUniLink 4in (10.16cm) x 10in (25.40cm) Pelvic/Thigh Pad, Metric, 1in (2.54cm) Spacing

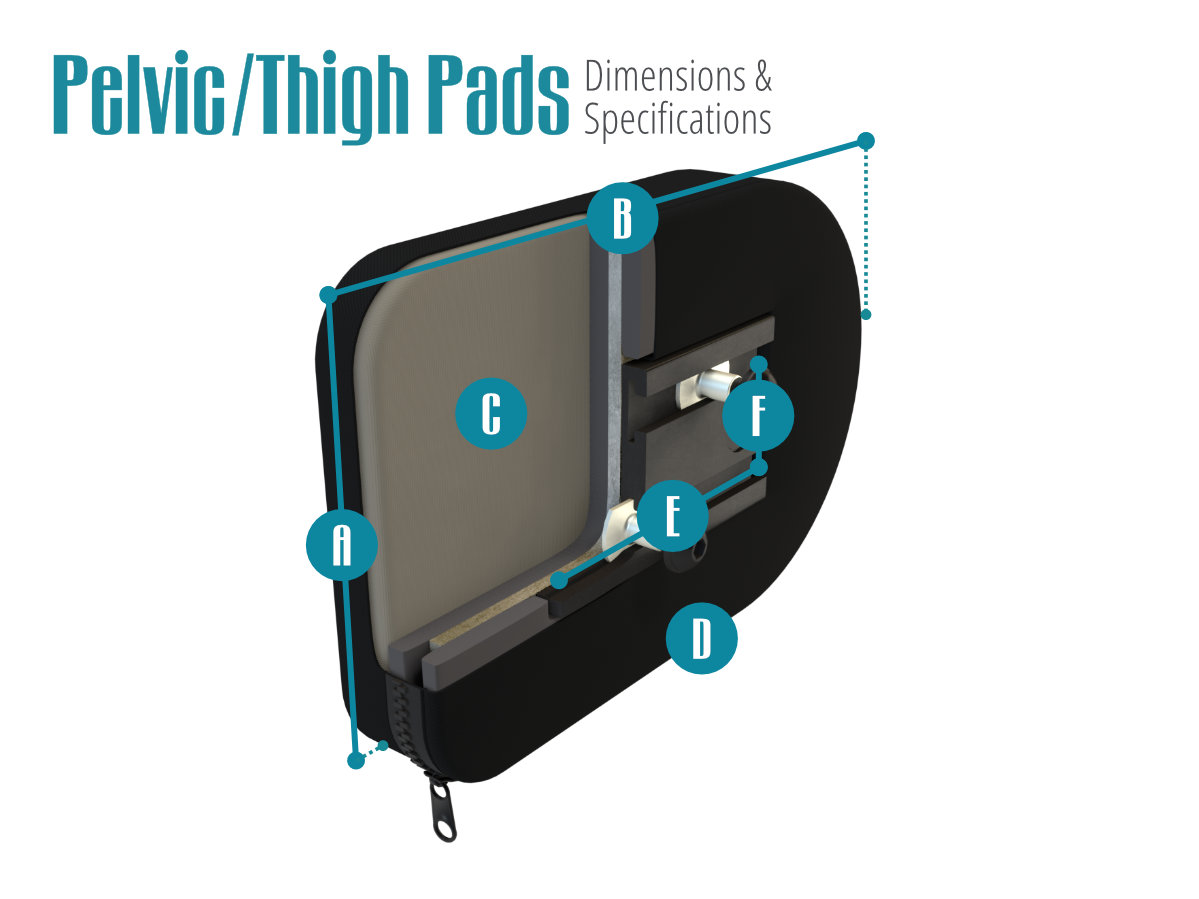

UniLink Pelvic/Thigh Track Pad Dimensions and Specifications
| Part Number | (A) Pad Height | (B) Pad Depth | (C) Cushion Material | (D) Cover Material | (E) Track Depth | (F) Spacing | Depth Travel |
|---|---|---|---|---|---|---|---|
4in (10.16cm) | 4in (10.16cm) | HR50 | Coolcore | 3in (7.62cm) | 1in (2.54cm) | 2in (5.08cm) | |
4in (10.16cm) | 6in (15.24cm) | HR50 | Coolcore | 3in (7.62cm) | 1in (2.54cm) | 2in (5.08cm) | |
4in (10.16cm) | 8in (20.32cm) | HR50 | Coolcore | 3in (7.62cm) | 1in (2.54cm) | 2in (5.08cm) | |
4in (10.16cm) | 10in (25.40cm) | HR50 | Coolcore | 5in (12.70cm) | 1in (2.54cm) | 4in (10.16cm) | |
4in (10.16cm) | 12in (30.48cm) | HR50 | Coolcore | 9in (22.86cm) | 1in (2.54cm) | 8in (20.32cm) |
IMPORTANT NOTEDimension tables do not display properly on small screens. Download UniLink Pelvic/Thigh Track Pad Dimensions and Specifications table on your device below.

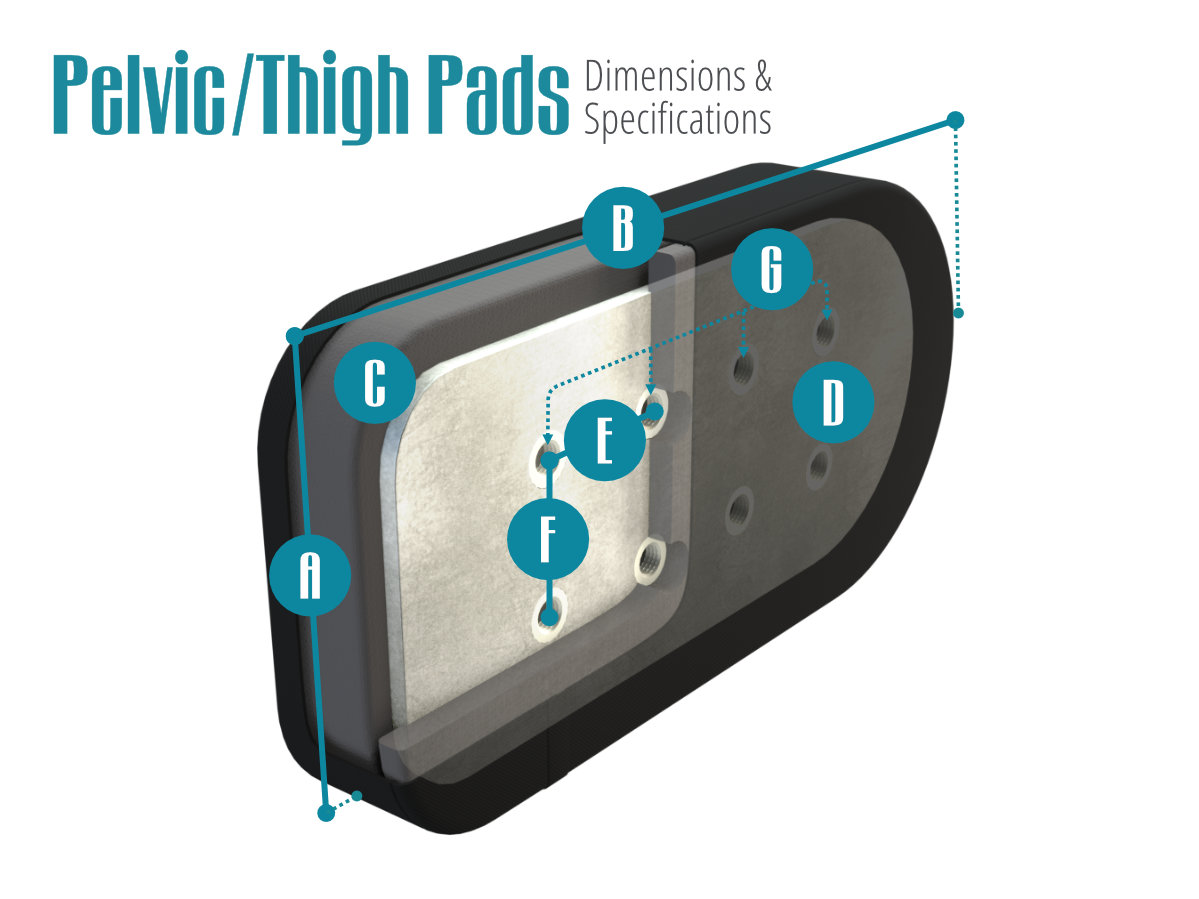

UniLink Pelvic/Thigh Traditional Pad Dimensions and Specifications
| Part Number | (A) Pad Height | (B) Pad Depth | (C) Cushion Material | (D) Cover Material | (E) Screw Pattern | (F) Spacing | (G) Steps |
|---|---|---|---|---|---|---|---|
3in (7.62cm) | 6in (15.24cm) | Crosslinked | Neoprene | 1in (2.54cm) | 1in (2.54cm) | 4 Steps | |
4in (10.16cm) | 4in (10.16cm) | Crosslinked | Neoprene | 1in (2.54cm) | 1in (2.54cm) | 3 Steps | |
4in (10.16cm) | 8in (20.32cm) | Crosslinked | Neoprene | 1in (2.54cm) | 1in (2.54cm) | 6 Steps | |
4in (10.16cm) | 10in (25.40cm) | Crosslinked | Neoprene | 1in (2.54cm) | 1in (2.54cm) | 6 Steps | |
4in (10.16cm) | 12in (30.48cm) | Crosslinked | Neoprene | 1in (2.54cm) | 1in (2.54cm) | 10 Steps |
IMPORTANT NOTEDimension tables do not display properly on small screens. Download UniLink Pelvic/Thigh Traditional Pad Dimensions and Specifications table on your device below.
Downloaded file can only be opened and viewed on desktop version of Excel or OpenOffice, for the moment. Check How to open downloaded .XLS and .ODS files?
Mounting Options
Pelvic/Thigh Mounting Options

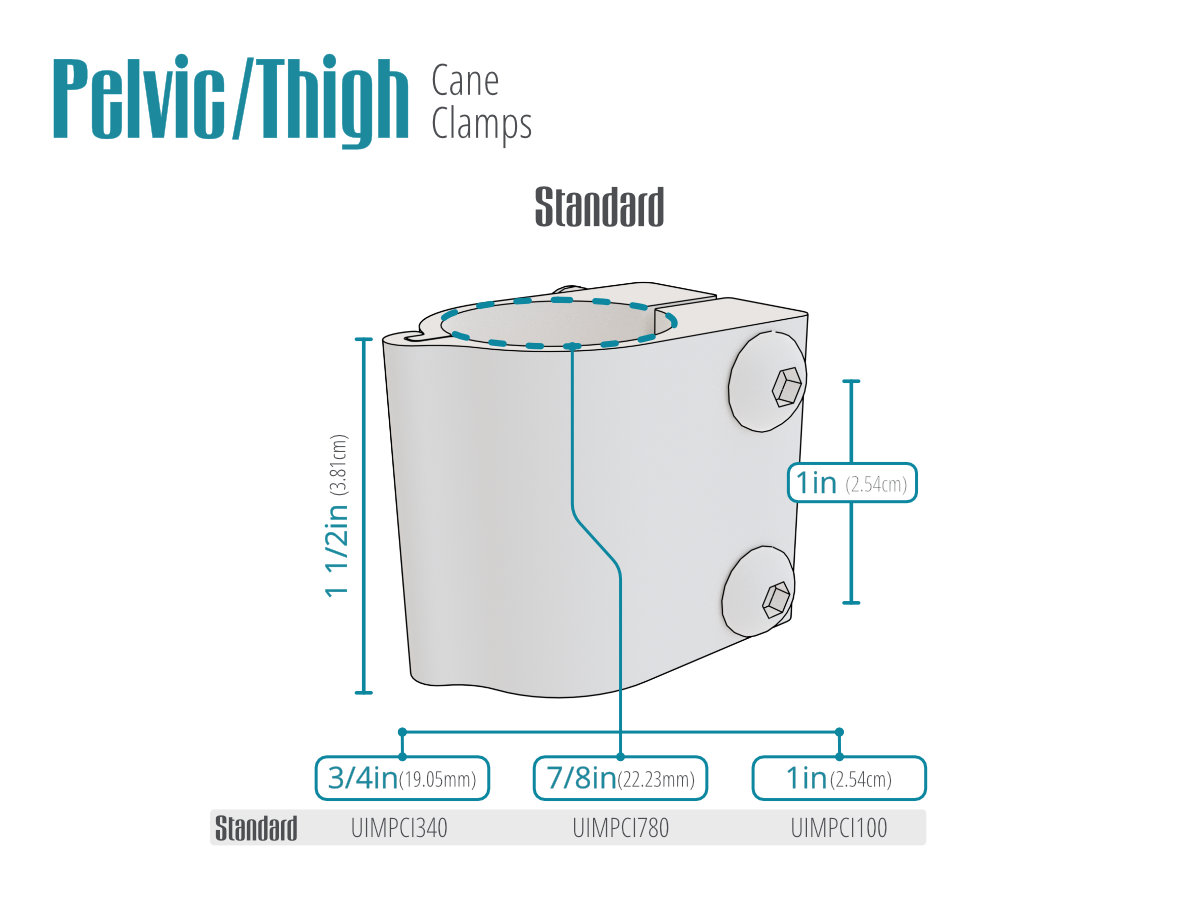

Cane Clamps
Cane mounts are made of lightweight black anodized aluminum. For the pelvic/thigh hardware, we recommend the standard cane mounts since they have a more robust holding over Crescent style cane mounts. The crescent style can be installed in a situation where the frame tubing is not completely exposed; for example, the seat cushion frame set up. To see all UniLink available options, see UniLink Trunk Solutions web content.

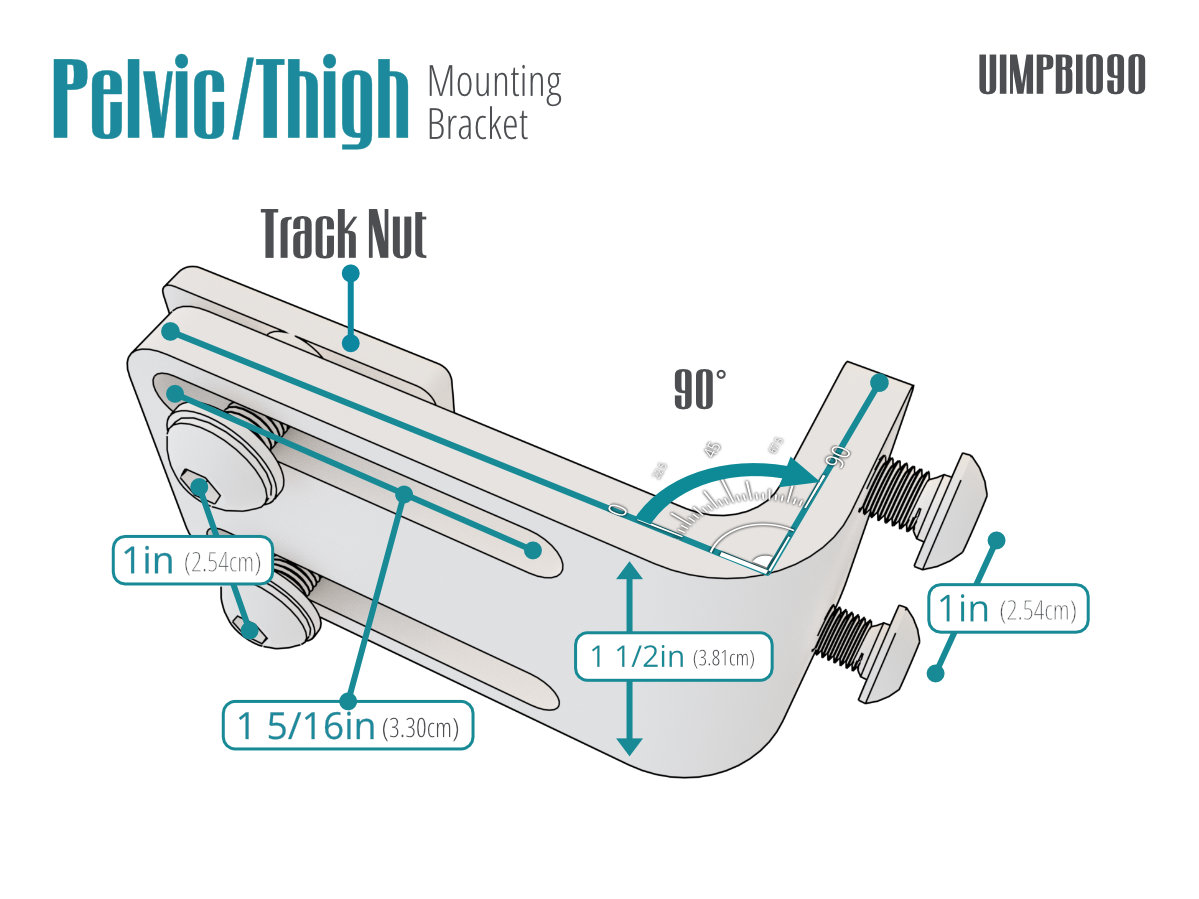

90° Mounting Bracket
Most brackets are made of black anodized aluminum. Pelvic/Thigh only offers the 90° version, if you are looking for all the UniLink available options see UniLink Trunk Solutions web content.
UniLink 90° All‑Seasons (AS) Bracket
The 90° AS Bracket is made mostly of black anodized aluminum. All‑Seasons brackets have a red anodized aluminum button for easy reference. Click here to see more options and information about the AS Brackets. The UniLink AS bracket includes the ASB adapter plate.
Cane Mounts
UIMPCI340
UniLink Pelvic/Thigh 3/4in (1.91cm) Cane Mount
UIMPCI780
UniLink Pelvic/Thigh 7/8in (2.22cm) Cane Mount
