Overview
UniLink Trunk Support Solutions
UniLink Trunk Support Solutions are a highly adjustable thoracic lateral support. They are used to help increase the user's stability and balance while in the chair. They can also serve as a tactile reminder or to correct flexible lateral trunk flexion.
This may help maintain the user in a functional position which prevents further postural decay while diminishing the need for repetitive repositioning of the user during the day.
Downloads
UniLink™ LATERALS OWNER'S MANUAL [3.13Mb]
FSC Option
Lateral Support with FSC
The Full Surface Contact (FSC) adjustment allows you to better rotate pad to the end user's body shape. It has an adaptability capacity up to 360° unconstrained rotation on most angles. The FSC operates as the hand and wrist, for a personal close fit.
The FSC needs to be ordered in two steps, first you need to select what version of mount set your seating setup requires, then add the FSC pad mount option as a different line item. See note below.
Note: The Lateral Mount Set for FSC does not include the FSC pad mount option which is sold separately. Remember to include the UIPFSI100 to your order.
Hardware Option
Standard Swing-Away
ULS25100-L
UniLink Swing Away Lateral - Left Side
ULS25100-R
UniLink Swing Away Lateral - Right Side

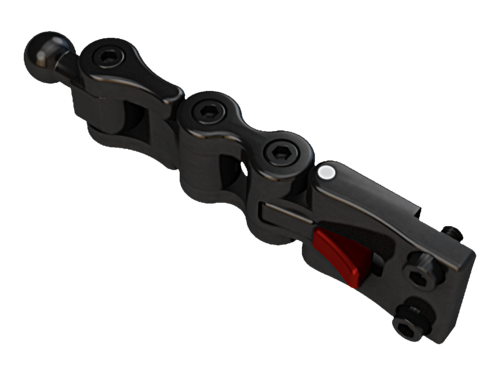

ULS2510F-L
ULS25100-L|ULS25100-R|ULS2510F-L|ULS2510F-R: UniLink Left Swing-Away Lateral Hardware for FSC OptionUniLink Left Swing-Away Lateral Mount Set for FSC - do not include UIPFSI100 FSC Pad Mount
Short Swing-Away
ULS25000-L
UniLink Left Short Swing-Away Lateral
ULS25000-R
UniLink Right Short Swing-Away Lateral

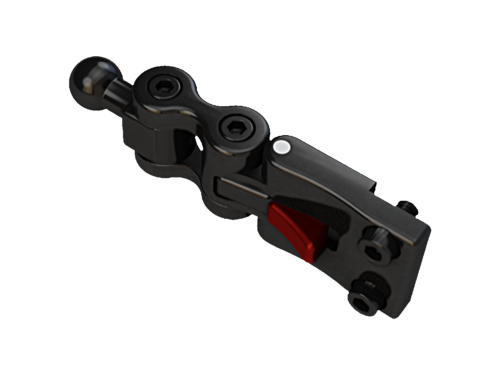

ULS2500F-L
ULS25000-L|ULS25000-R|ULS2500F-L|ULS2500F-R: UniLink Left Short Swing-Away Lateral Hardware for FSC OptionUniLink Left Short Swing-Away Lateral Mount Set for FSC - do not include UIPFSI100 FSC Pad Mount
Inline Swing-Away
ULS05100-L
UniLink Left In-Line Swing Away Lateral
ULS05100-R
UniLink Right In-Line Swing Away Lateral

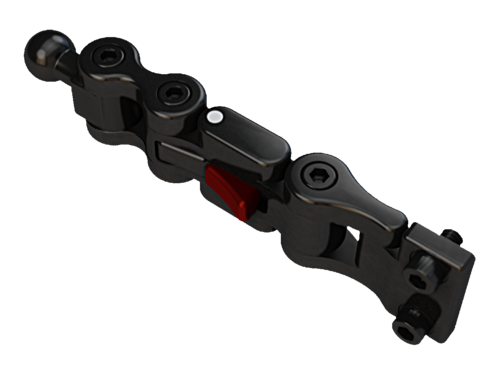

ULS0510F-L
ULS05100-L|ULS05100-R|ULS0510F-L|ULS0510F-R: UniLink Left In-Line Swing-Away Lateral Hardware for FSC OptionUniLink Left In-Line Swing-Away Lateral Mount Set for FSC - do not include UIPFSI100 FSC Pad Mount
Fixed Short
ULS2320F-L
UniLink Short Fixed Hardware Right Side FSC Ready
Fixed Standard
Mounting Options
Mounting Options
Mounts are not included with the hardware and must be selected per application.
We have a vast selection of options to choose from:
- Cane Mounts (Crescent or Standard) for 3/4in (19.05mm), 7/8in (22.23mm) or 1in (2.54cm) tubing.
- Mounting Brackets: 48°, 90°, 105°, 125° or 135° angles.
- OEM Mounts for Permobil Corpus 3G and Quantum Rehab TB3 and TB4 systems.
- All‑Season Brackets: 90°, 80°, 75° and 70° angles.
Stealth All‑Seasons Bracket (ASB)
The ASB has a tool-free mechanism that adjusts up to 2in (5.08cm) per side in 1/4in (6.35mm) increments, and a 1 1/2in (3.81cm) width adjustment on the attaching plate, for a total of 3 1/2in (8.89cm) of width adjustment per side.
A tool-less push button allows width adjustment, which is ideal when end user is taking a thick coat on/off or when the end user may need varying amounts of support throughout the day.
Uses UniLink ASB adapter plate.
Permobil and Quantum Rehab Pre‑Configured Solutions
We have pre-assembled kits to mount on popular PWC seating systems like Permobil's Corpus 3G and Quantum Rehabs Tru‑Balance 3 and Tru‑Balance 4 backs
Other systems will be added by market's demand.

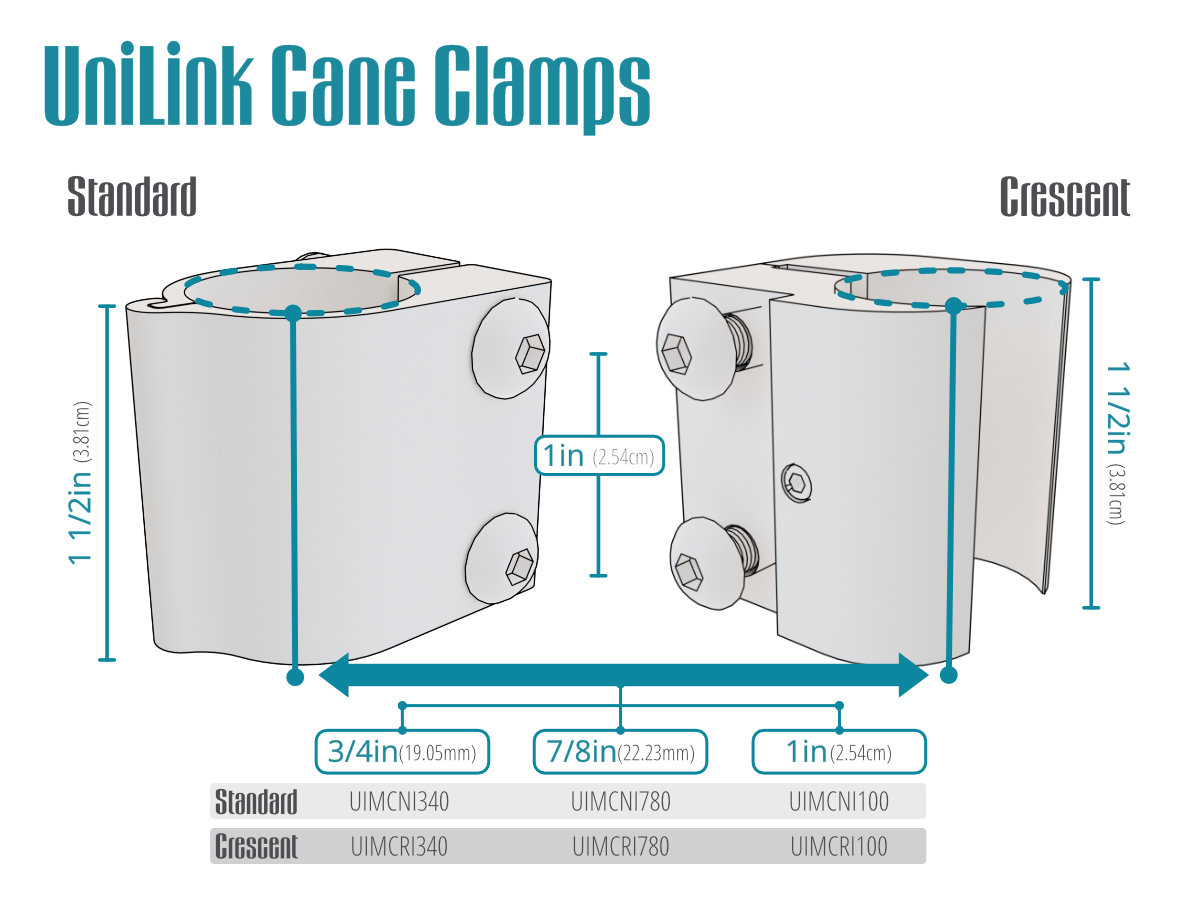

Cane Clamps
Cane Mounts
Cane mounts are made of lightweight black anodized aluminum. Standard cane mounts have a more robust holding over crescent style cane mounts, but the crescent style can be installed in a situation where the frame tubing is not completely exposed.
Standard Cane Mounts
Crescent Cane Mounts
Mounting Brackets
Mounting Brackets
Most brackets are made of black anodized aluminum.
Standard Mounting Brackets

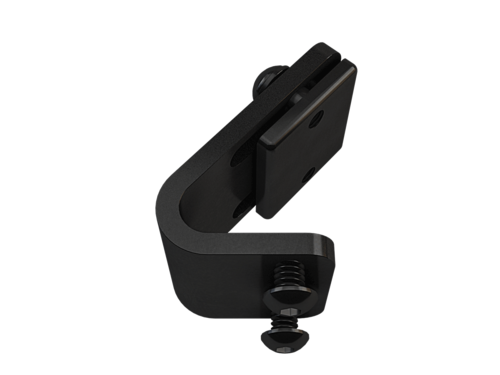

UIMBKI048
UIMBKI048|UIMBKI090|UIMBKI105|UIMBKI125|UIMBKI135: UniLink 48° Lateral Mount Bracket (Corpus 3G)UniLink 48° Lateral Mount Bracket (Corpus 3G)

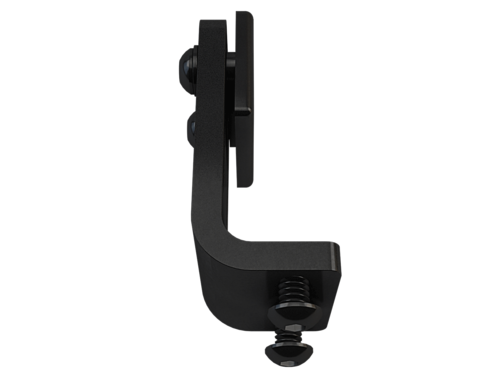

UIMBKI090
UIMBKI048|UIMBKI090|UIMBKI105|UIMBKI125|UIMBKI135: UniLink 90° Lateral Mount Bracket (TFB I?Back / Diego / TFB Flex)UniLink 90° Lateral Mount Bracket (TFB I?Back / Diego / TFB Flex)

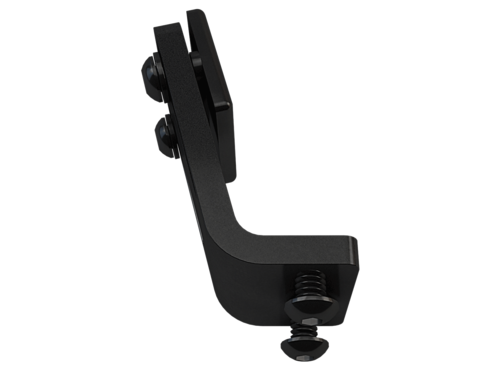

UIMBKI105
UIMBKI048|UIMBKI090|UIMBKI105|UIMBKI125|UIMBKI135: UniLink 105° Lateral Mount Bracket (TFB R?Back)UniLink 105° Lateral Mount Bracket (TFB R?Back)
UIMBKI125
UniLink 125° Lateral Mount Bracket (TB3/TB4)

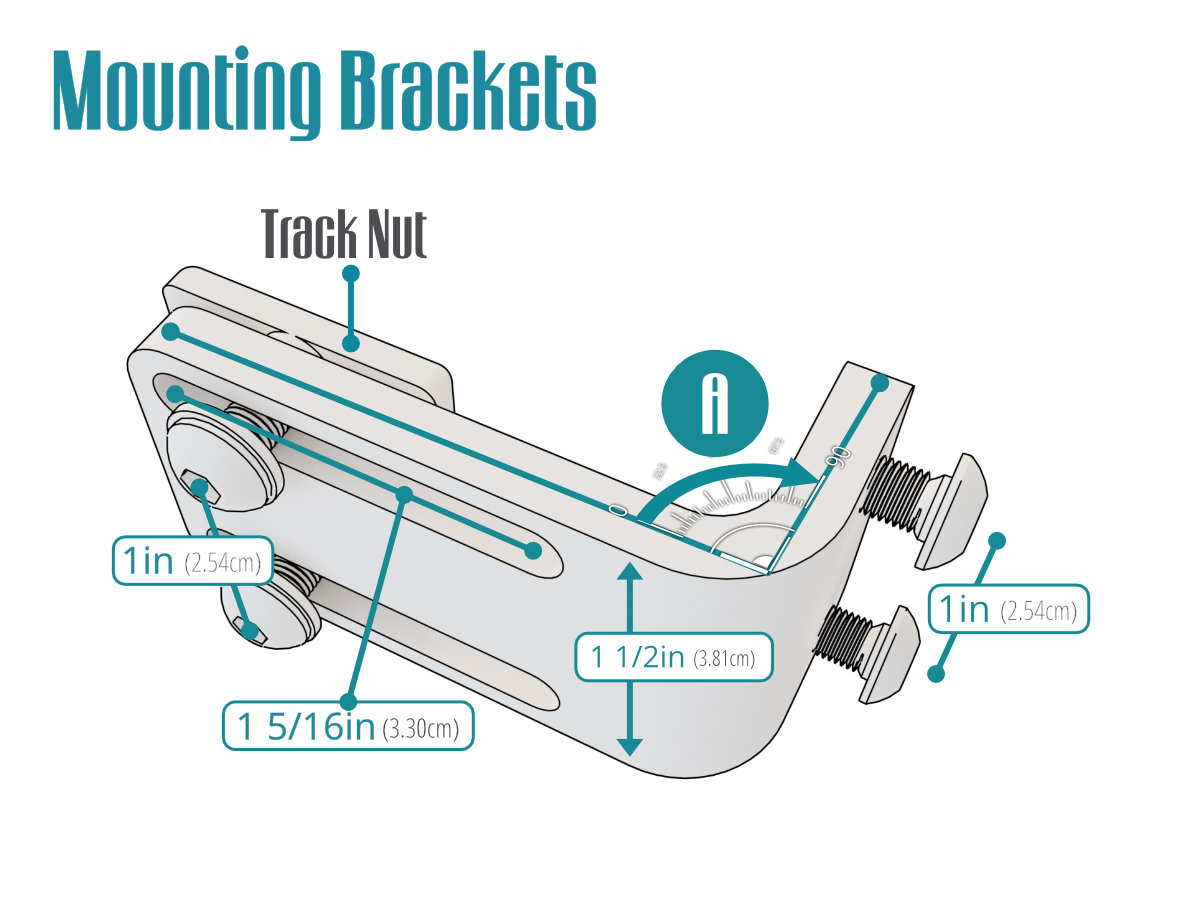

UniLink Mounting Brackets Reference
| Part Number | (A) Curve Angle | Compatible With |
|---|---|---|
| 48° | Permobil's Corpus 3G | |
| 90° | TFB I-Back / Diego / TFB Flex | |
| 105° | TFB R-Back | |
| 125° | Quantum Rehab's TRU‑Balance® 3 & 4 | |
| 135° | ADI / Q‑Back 2 / TFB Contour |
All-Seasons Brackets
All‑Seasons Brackets
Most brackets are made of black anodized aluminum. All‑Seasons brackets have a red anodized aluminum button for easy reference. Click here to see more options and information about the AS Brackets. The UniLink AS bracket includes the ASB adapter plate.
All‑Seasons Mounting Brackets
UIMASI070
UniLink 70° All-Seasons Bracket
UIMASI075
UniLink 75° All-Seasons Bracket
UIMASI080
UniLink 80° All-Seasons Bracket
UniLink All Seasons Reference
| Part Number | (A) Curve Angle | Bracket Angle | Compatible With |
|---|---|---|---|
| 90° | 90° | TFB I-Back / Diego / TFB Flex | |
| 80° | 100° | ||
| 75° | 105° | TFB R-Back | |
| 70° | 110° |
IMPORTANT NOTEDimension tables do not display properly on small screens. Download UniLink All Seasons Reference table on your device below.
Downloaded file can only be opened and viewed on desktop version of Excel or OpenOffice, for the moment. Check How to open downloaded .XLS and .ODS files?
Mounting Kits
Lateral Mounting Kit
OEM solutions have been designed in cooperation with 3rd party PWC manufacturers to ensure a perfect integration with their chair seating system. If you would like to have a pre-configured solution for your PWC, ask your PWC manufacturer to contact Stealth Products R&D department.
Permobil and Quantum Rehab
Pad Options
Reconfigured Pads for UniLink
UniLink uses the traditional pads that have been modifed to use metric as well be true to the size which is labeled as. If the pad is labeled 3in (7.62cm) x 5in (12.70cm) the final pad product is that size approximately, depending on cover and seams. A standard custom pad is available.

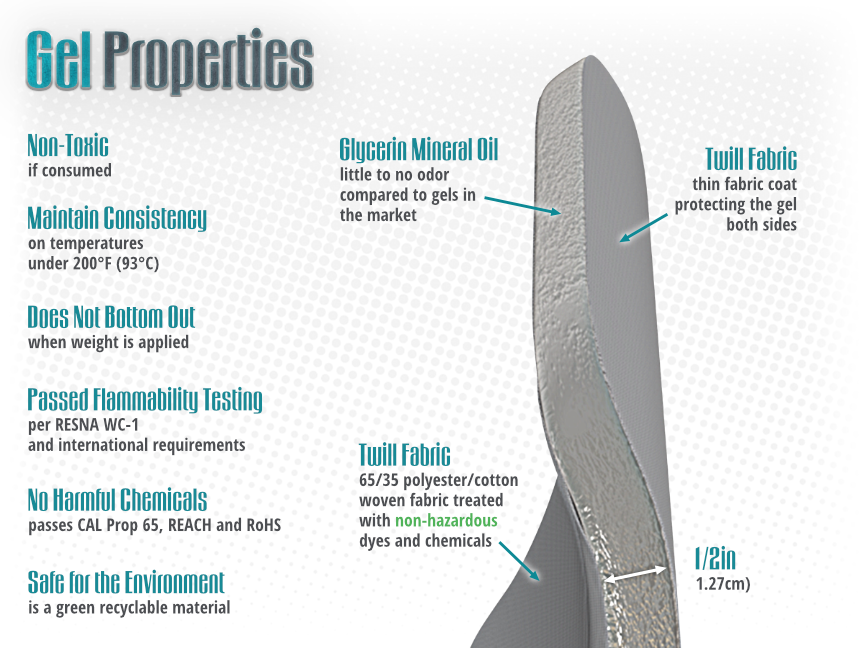

Gel Pads are Safe
Our gel pads use a Glycerine/Mineral Oil based gel that passes flammability testing per RESNA WC-1 and international requirements, as well as CAL Prop 65, REACH and RoHS testing for Non-Known Harmful Chemical use. The gel has little to no odor compared to other gels in the market.
UniLink Pad Dimensions and Properties
| Part Number | (A) Pad Height | (B) Pad Width | (C) Cushion Material | (D) Cover Material | (E) Screw Pattern | (F) Steps |
|---|---|---|---|---|---|---|
3in (7.62cm) | 5in (12.70cm) | Crosslinked | Neoprene | 1in (2.54cm) | 2 Steps | |
4in (10.16cm) | 6in (15.24cm) | Crosslinked | Neoprene | 1/2in (12.70mm) | 5 Steps | |
5in (12.70cm) | 7in (17.78cm) | Crosslinked | Neoprene | 1/2in (12.70mm) | 5 Steps | |
3in (7.62cm) | 5in (12.70cm) | Gel | Neoprene | 1in (2.54cm) | 2 Steps | |
4in (10.16cm) | 6in (15.24cm) | Gel | Neoprene | 1/2in (12.70mm) | 5 Steps | |
5in (12.70cm) | 7in (17.78cm) | Gel | Neoprene | 1/2in (12.70mm) | 5 Steps |
IMPORTANT NOTEDimension tables do not display properly on small screens. Download UniLink Pad Dimensions and Properties table on your device below.
Downloaded file can only be opened and viewed on desktop version of Excel or OpenOffice, for the moment. Check How to open downloaded .XLS and .ODS files?
Standard Pads
ULP535050320
UniLink 3in X 5in (7.62cm x 12.70cm) Lateral Pad, Neoprene, Metric 1in (2.54cm) Spacing
ULP546050320
UniLink 4in X 6in (10.16cm x 15.24cm) Lateral Pad, Neoprene, Metric 1in (2.54cm) Spacing
Gel Pads
ULP535057120
UniLink 3in X 5in (7.62cm x 12.70cm) Gel Lateral Pad, Neoprene, Metric 1in (2.54cm) Spacing
ULP546057120
UniLink 4in X 6in (10.16cm x 15.24cm) Gel Lateral Pad, Neoprene, Metric 1in (2.54cm) Spacing
