Overview
Tarta

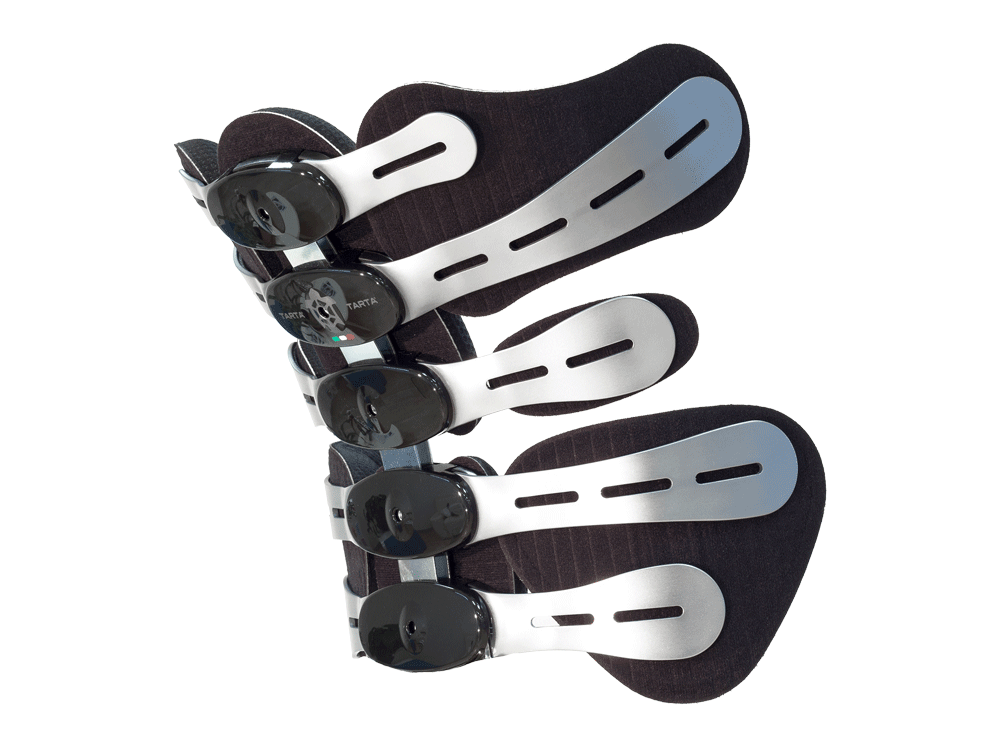

Tarta Ergonomic Backs
- Designed to be adaptable to the user's needs, every single part of the Tarta Original® Custom can be customized to fit the individual with minimal tools and easy adjustments.
- Original is the most flexible backrest in the world! The central column gives freedom of movement and support to improve quality of life for users.
- Original is the winner of 5 International design contests. These awards confirm the value of this revolutionary product.
This new modular concept provides a highly-versatile, fully customizable, back support.
These benefits result in the field, enabling equipment providers and clinicians with the ability to directly impact the final outcome.
Features
Unique Features
Soft & Breathable
To maximize the comfort of the backrest. The spaces between the pads helps to keep the back of the user dry. Each pad is made of washable foam with breathable technical material for maximal comfort.
Extreme Customization
To satisfy all the users needs. Every rib (stave) and every vertebrae can be adjusted to follow scoliosis cases.
Modular Structure
To easily change the length of the backrest! This feature is extremely useful for children.
Options - Ribs
Ribs
Tarta Rib Dimensions
| Size | 1 [1,2] | 2 [1,2] | 3 [1,2] | 4 [1,2] | 5 [1,2] | |||||
| Width 3 | Depth | Width 3 | Depth | Width 3 | Depth | Width 3 | Depth | Width 3 | Depth | |
| S | 5 1/16in (12.86cm) | 1in (2.54cm) | 5in (12.70cm) | 2 1/2in (6.35cm) | 5in (12.70cm) | 3 1/2in (8.89cm) | 4 7/8in (12.38cm) | 4 3/4in (12.07cm) | N/A | N/A |
| M | 4 1/8in (10.48cm) | 1/2in (12.70mm) | 5 13/32in (13.72cm) | 2in (5.08cm) | 5 29/32in (14.99cm) | 3 3/4in (9.53cm) | 5 29/32in (14.99cm) | 5 1/4in (13.34cm) | N/A | N/A |
| L | 5 7/8in (14.92cm) | 1/4in (6.35mm) | 6 13/32in (16.26cm) | 1 1/4in (3.18cm) | 6 29/32in (17.53cm) | 2in (5.08cm) | 6 15/16in (17.62cm) | 4in (10.16cm) | 6 15/16in (17.62cm) | 5 1/2in (13.97cm) |
| X | 6 5/8in (16.83cm) | 1/2in (12.70mm) | 7 13/32in (18.80cm) | 1 1/4in (3.18cm) | 7 7/8in (20.00cm) | 2in (5.08cm) | 7 15/16in (20.16cm) | 3 3/4in (9.53cm) | 7 15/16in (20.16cm) | 5 1/4in (13.34cm) |
| ||||||||||
Options - Pads
Modular Pads
Tarta Pad Dimensions
| PN# | Width X Height | PN# | Width X Height | ||
|---|---|---|---|---|---|
| TRT-PAD-051 | 4 3/8in (11.11cm) x 2 1/16in (5.24cm) | TRT-PAD-057 | 6 1/8in (15.56cm) x 4 3/8in (11.11cm) | ||
| TRT-PAD-052 | 4 3/8in (11.11cm) x 4 1/2in (11.43cm) | TRT-PAD-058 | 7in (17.78cm) x 4 1/2in (11.43cm) | ||
| TRT-PAD-053 | 7 3/8in (18.73cm) x 4 7/8in (12.38cm) | TRT-PAD-059 | 5 1/16in (12.86cm) x 4 7/8in (12.38cm) | ||
| TRT-PAD-054 | 8 1/4in (20.96cm) x 4 7/8in (12.38cm) | TRT-PAD-060 | 6 3/4in (17.15cm) x 5in (12.70cm) | ||
| TRT-PAD-055 | 9 1/2in (24.13cm) x 4 7/8in (12.38cm) | TRT-PAD-061 | 4 1/2in (11.43cm) x 5 1/8in (13.02cm) | ||
| TRT-PAD-056 | 5 3/8in (13.65cm) x 4 1/8in (10.48cm) | TRT-PAD-062 | 4 1/2in (11.43cm) x 7 1/16in (17.94cm) | ||
| |||||
IMPORTANT NOTEDimension tables do not display properly on small screens. Download Tarta Pad Dimensions table on your device below.
Downloaded file can only be opened and viewed on desktop version of Excel or OpenOffice, for the moment. Check How to open downloaded .XLS and .ODS files?
Options - Pads Catalog
PAD OPTIONS ON CATALOG
TRT-PAD-051
TRT-PAD-052
TRT-PAD-053
TRT-PAD-054
TRT-PAD-055
TRT-PAD-056
TRT-PAD-057
TRT-PAD-058
TRT-PAD-059
TRT-PAD-060
TRT-PAD-061
Options - Mounting
Mounting Hardware
Adjustable Height
Single Point Adjustable Height TRTHW1AS or TRTHW1AL
Tarta Hardware Kit
| PN# | Description | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
|---|---|---|---|---|---|---|---|---|---|---|
| TRTHW1AS | Single Point, Adjustable Height, Small - Medium | |||||||||
| TRTHW1AL | Single Point, Adjustable Height, Large - X Large | |||||||||
| TRTHW1FS | Single Point, Fixed, Small - Medium | |||||||||
| TRTHW1FL | Single Point, Fixed, Large - Extra Large | |||||||||
| TRTHW2RS | 2 Point, Removable, Small - Medium | |||||||||
| TRTHW2RL | 2 Point, Removable, Large - Extra Large | |||||||||
| TRTHW1RS | Single Point, Removable, Small - Medium | |||||||||
| TRTHW1RL | Single Point, Removable, Large - Extra Large | |||||||||
| ||||||||||
IMPORTANT NOTEDimension tables do not display properly on small screens. Download Tarta Hardware Kit table on your device below.
Downloaded file can only be opened and viewed on desktop version of Excel or OpenOffice, for the moment. Check How to open downloaded .XLS and .ODS files?
Hardware Packages
Back Mounting Hardware Packages
TRTHW1AL
TRTHW1AS
TRTHW1FL
TRTHW1FS
TRTHW1RL
TRTHW1RS
TRTHW2RL
