Diego Back System
The Diego Back System has been specifically designed for pediatric users. No more reduced versions of adult products. Its main characteristics are:
- Adjustable Contoured Back
- Growth Adaptability
- Easy Set Up
- Easy Maintenance
- On-Demand Configuration
For the order form to function as expected it requires Adobe Acrobat DC Reader (Desktop)

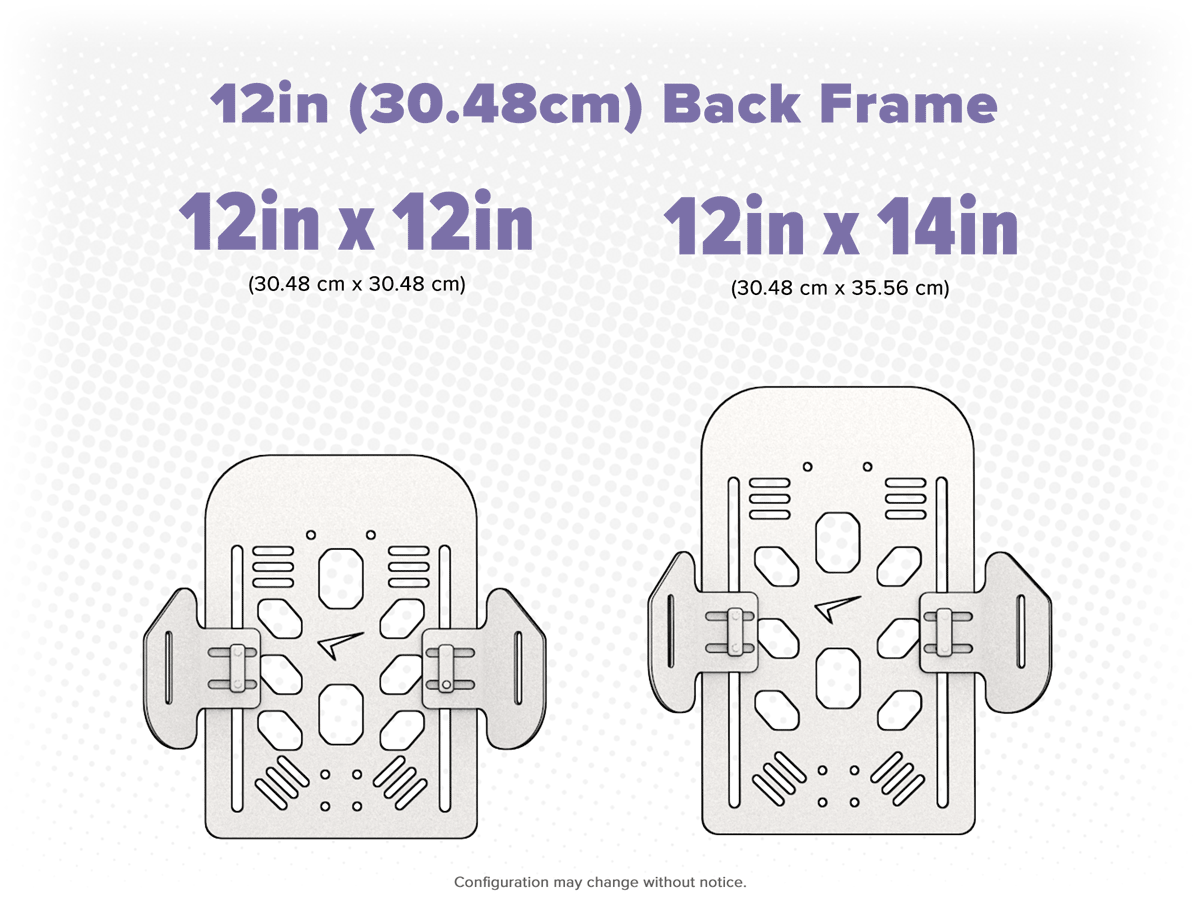

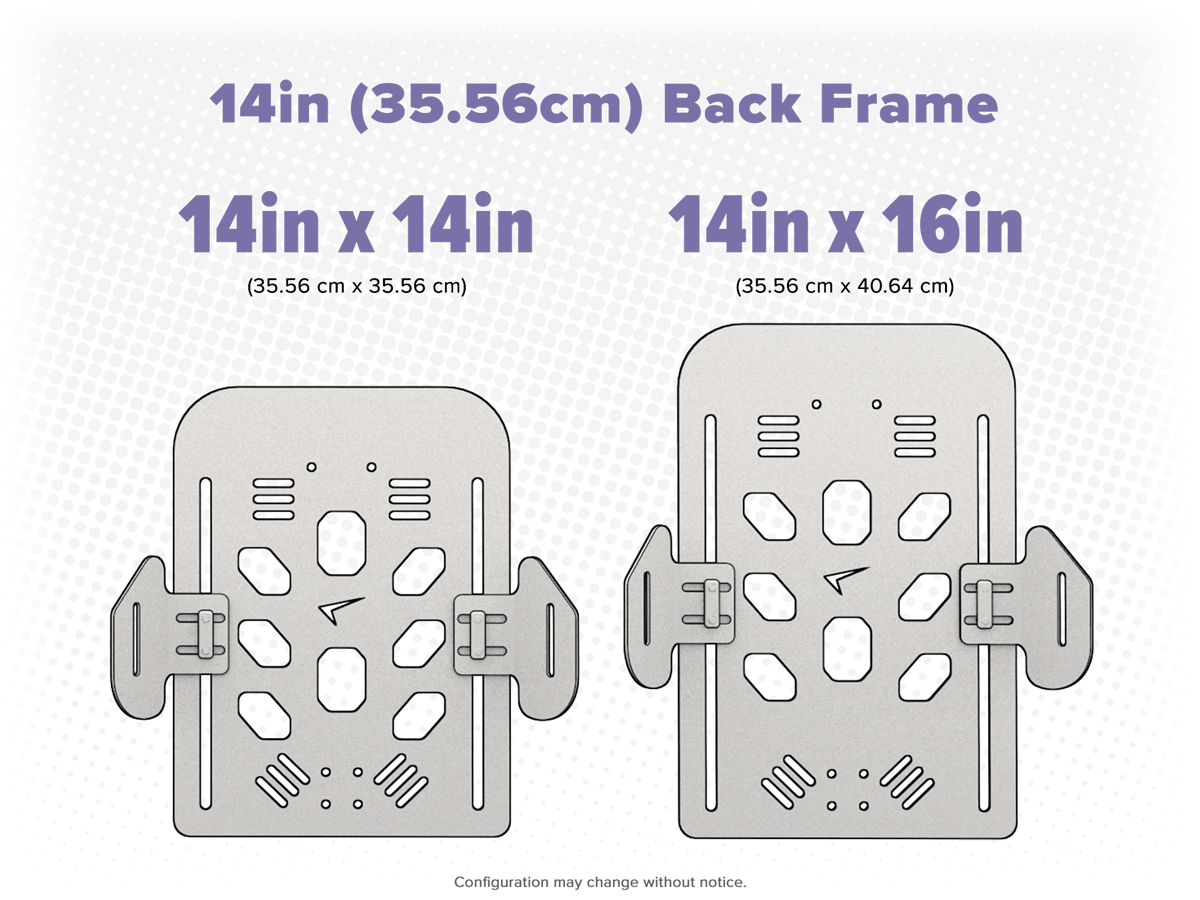

Diego Back frame is made from lightweight aluminum with a black powder-coated finish. Comes pre-configured to receive head support hardware and seat-to-back bracket to be attached together with the Diego Seat.
Contour wings come included with the frame. The wings allow width and height growth on-demand to compensate for user growth or sesonal attire changes.
Diego Back/Seat Matrix
IMPORTANT NOTEDimension tables do not display properly on small screens. Download Diego Back/Seat Matrix table on your device below.
Sets with Package A Option
|DGB1416AC-FL||$845.00||MSRP prices and exchange rates are subject to change. Exchange Rate may vary and cannot be considered definite value as this service is provided by an external source.|
Sets with Package B Option
|DGB1416BC-FL||$940.00||MSRP prices and exchange rates are subject to change. Exchange Rate may vary and cannot be considered definite value as this service is provided by an external source.|
Diego Back Cushion
Diego Back cushion comes standard with 1/2in (12.70mm) HR3 contact foam and 1/4in (6.35mm) Closed Cell foam as base which is the basic package A included with the back system. There is a second option which consists of 1/2in (12.70mm) Medium SunMate® contact foam with 1/2in (12.70mm) HR3 foam as base.
Foam packages do not affect Head Support or Lateral Support pads configurations.
The Lateral pads made out of closed cell foam covered with Coolcore® Technology on each side of the System.
Diego Cushion Foam Packages
IMPORTANT NOTEDimension tables do not display properly on small screens. Download Diego Cushion Foam Packages table on your device below.
Diego Back Foam Dimensions
IMPORTANT NOTEDimension tables do not display properly on small screens. Download Diego Back Foam Dimensions table on your device below.
Built-in Lateral Support
What makes the Diego Back different from other systems is that it has been built with a child's growth in mind.
The built-in lateral support allows parents or care takers to quickly adjust the back width or contour height.
Different from our TFB back family, the Diego Back wings are designed to add depth contour and lateral support with one simple to understand hardware configuration.

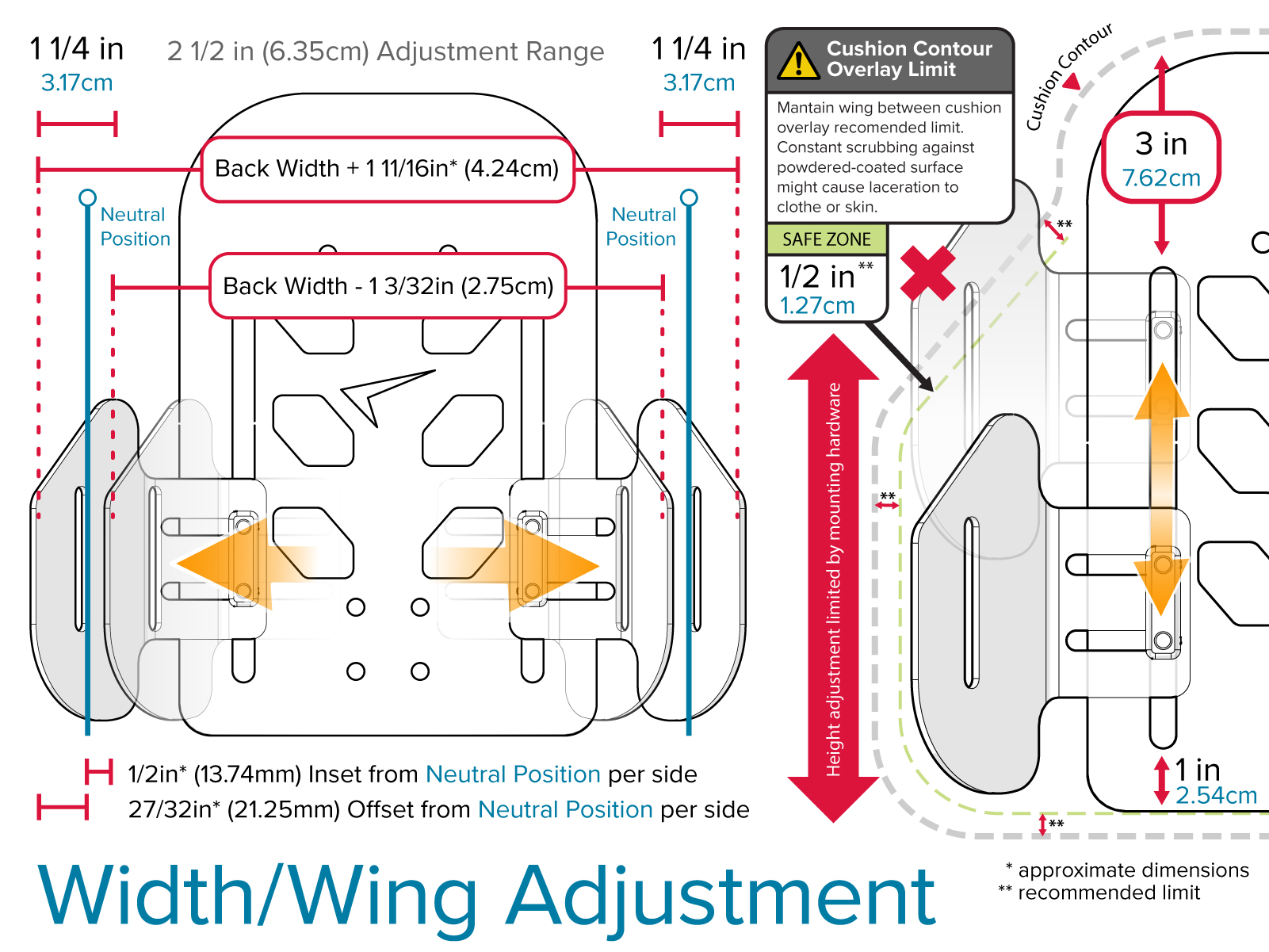

The wings can be expanded to increase or decrease back width, or can be raised to position the lateral support right where you need it most.
Modular Lateral Support

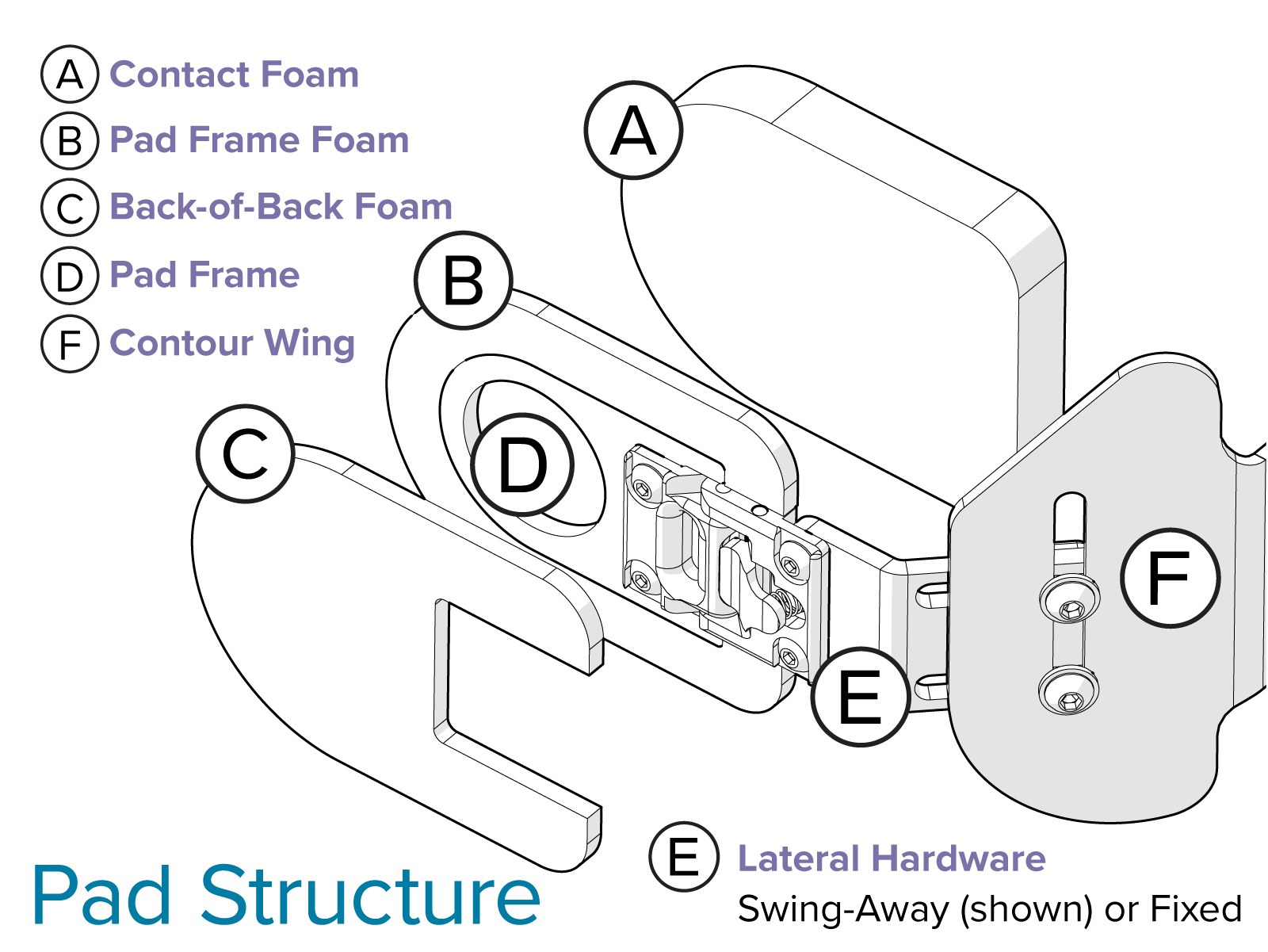

The lateral support pads have been redesigned for a lighter and stronger profile.
With less flat surface frame the pad by itself reduces pressure points while still offering a reliable lateral support for the child.
Lateral Pad Sizes
IMPORTANT NOTEDimension tables do not display properly on small screens. Download Lateral Pad Sizes table on your device below.

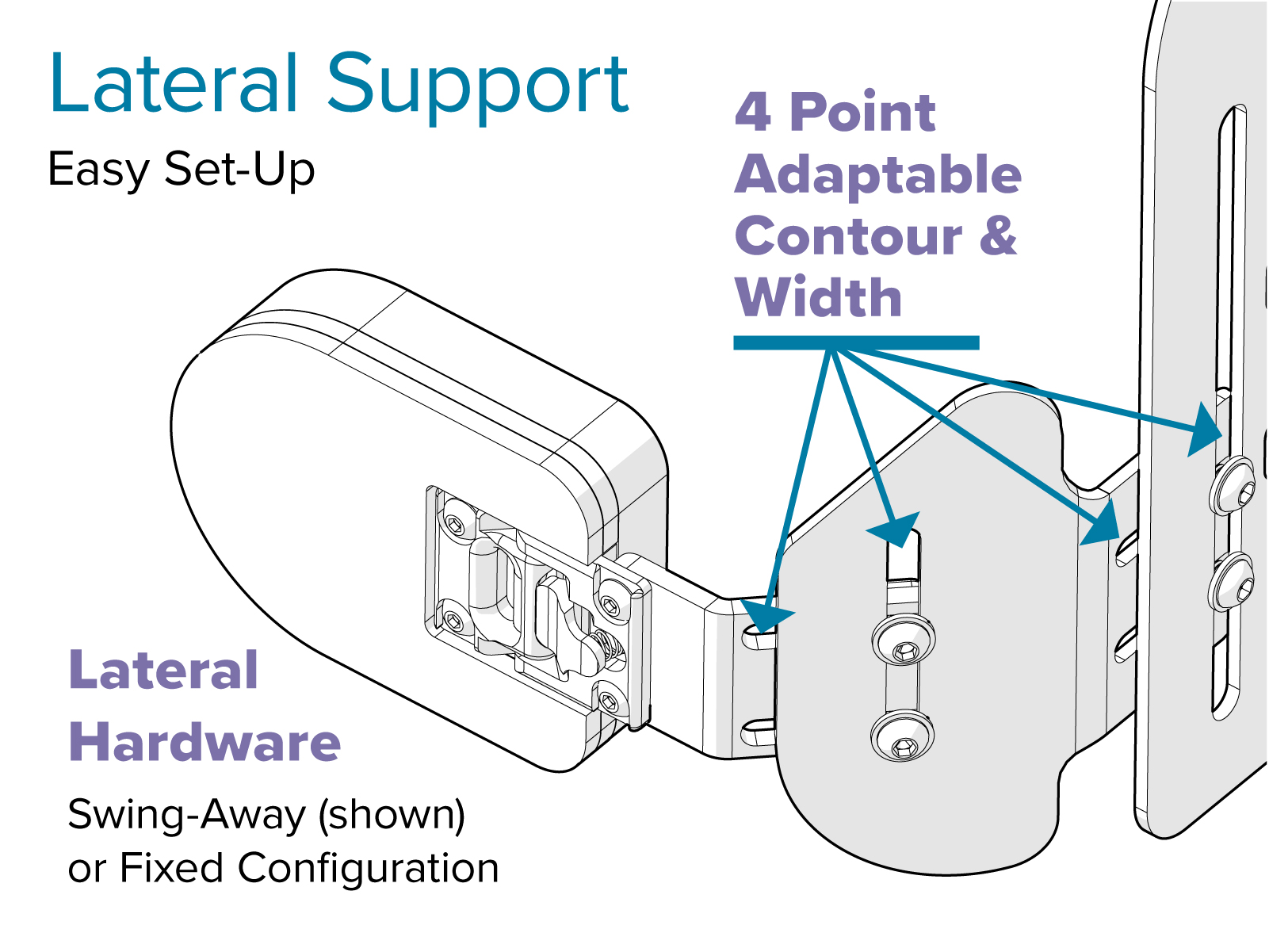

The Diego Back lateral hardware is adapted from our popular thin modular hardware and redesigned for the Diego System. It comes in two configurations: a) Fixed or b) Swing-Away (shown).
The swing-away option allows to move out-of-the-way the hardware and pad by pushing a red button located on the outside of the hardware. Swings away approximately 120° with pad and 135° without it.
How does the FlipLock work?
The FlipLock is a versatile removable mount that allows multiple configurations and the ability to easily remove the backrest then lock into place with in a flip of a lever.
Strong and secure, when mounted the seating system is firmly locked into place.
Easy to Remove/Lock
The FlipLock comes with a red anodized aluminum lever for visual reference. Flip resistance can be adjusted easily with a set screw.
When unlocked the back can be easily removed and replaced when needed for transporting or traveling.
The mounting hardware has been crash tested with the Diego System which makes it WC-20 certified. See WC requirements at the bottom of this page.
Easy to Set Up
The cane clamp provides the ability to clamp the hardware in most of the wheelchair frames in the market. It can be adjusted to fit frames with canes from 19/32in (14.99mm) to 1in (2.54cm) diameters.
Additionally it offers 40° of recline for a more comfortable and personalized set up, 20° front or back respectively.
Diego Head Support System
The Diego Head System has been specifically designed for pediatric users. No more reduced versions of adult products. Its main characteristics are:
- Most Popular Head Support
- Removable Pad for Maintenance
- Coolcore® Cover
- Multi-Axis Universal Head Support Mount
- On-Demand Configuration
Special Diego Edition Pad
Diego headrest pad is based on our most popular headrest selection, the Comfort Plus. Its main features:
- Supply a resting position or support against gravity in tilt or recline.
- Add a surface behind the head during automotive transportation.
- Easily accommodate the addition of positioning components and accessories to provide additional clinical interventions.
- Simplified ordering for pediatric: 6in (15.24cm) or 8in (20.32cm) pad options.
- Comes standard with our Coolcore for-all-season-comfort cover technology.
Pad final dimension is affected by the cover and it seams, and also by the foam overlay. But it comes in 2 frame dimensions a) 6in (15.24cm) or b) 8in (20.32cm). See picture on the rightbelow for more information.
HMO501 - Multi-Axis Mounting
The HMO501 is a versatile multi-axis, configurable mounting hardware that allows fine tuning of the head pad position to fit smaller users.
With 6 points of adjustment, the HMO501 has almost unlimited positioning possibilities. Easy to acquire on-demand adjustments as height, depth, tilt and recline.
Made out of strong aluminum and black anodize treatment for a more durable and aesthetic finished. Fits pad mounts with either 1in or 17mm ball kit.
What is Coolcore®?
- Year Round Temperature Control
- Chemical Free
- 4-Way Stretch
- Patented Technology
- Better Cooling Ability
- Durable - Last Longer
- Protects from Sun's Harmful Rays (UPF)
While the other makers of cooling fabrics use a number of chemicals to enhance wicking, transportation and evaporation, Coolcore fabrics are chemical free. To make that possible, we changed the essence of cooling fabric technology right down to its very core.
from Coolcore Website
A great base layer in summer is a great base layer in winter.
Stealth's Cushions Thermoregulation line is not a new technology, but a new application. The Coolcore Technology starts with cooling but the patented yarn technology makes for a better textile that provides year‑round temperature regulation.
Coolcore is a research proven performance fabric technology that adapts to its environment and regulates temperature by managing heat and moisture. The proprietary construction helps manage and distribute moisture quickly throughout the fabric to enhance the evaporation and drying time.
Chemical Free Fabric Technology
Normally other brand fabrics use topical chemicals that not only can be harmful to your skin, but after only a few washes, the cooling properties of the product are no longer effective. The Coolcore cooling technology is built into the fabric fibers, preventing any decline in the performance and keeping it's cooling properties. Coolcore patented technology allows for a controlled evaporative process that keeps you cool, dry and comfortable in any condition.
Research driven, patented fabrics from Coolcore are chemical-free and yield remarkable benefits. They cool better, last much longer and offer protection from the suns harmful rays (UPF)
- WC20 transit hardware requires: WC18 Restraint, WC19 Base and WC20 Seat/Back.
- Per RESNA WC-4:2012/ISO 16840. For more information visit official site.
- Applicable in the United States and its territories Only
- HCPCS codes provided should not be considered as legal advice and do not guarantee reimbursement.
- DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement.
