Overview
Fixed Hardware
The LT500 | LTN500 series is a standard, heavy duty fixed thoracic bracket. The standard configuration comes with a medium profile flush "L" bracket for mounting. A variety of different sized flush pad mounts, offsets, reverse offsets, and mounting hardware are available to configure to the need of the client.
Standard/Pediatric Hardware
Flush Hardware
LT500 Series
| PN# | Description | Profile |
|---|---|---|
| Standard Profile | 5in (12.70cm) | |
| Medium Profile | 6in (15.24cm) | |
| High Profile | 7in (17.78cm) | |
| Extended Profile | 9in (22.86cm) |
IMPORTANT NOTEDimension tables do not display properly on small screens. Download LT500 Series table on your device below.
Downloaded file can only be opened and viewed on desktop version of Excel or OpenOffice, for the moment. Check How to open downloaded .XLS and .ODS files?
Flush Hardware
Flush Hardware only allows specific adjustments based on the structure of the seating system and the client anthropometric. To achieve additional adjustments outside the spectrum of the limitations of the hardware, positioning accessories and modifications available for this hardware could be necessary in order to install.
Standard
Pediatric (Niño)
Niño (Pediatric) Series
| PN# | Description | Profile |
|---|---|---|
| Standard Profile | 4in (10.16cm) | |
| High Profile | 6in (15.24cm) |
IMPORTANT NOTEDimension tables do not display properly on small screens. Download Niño (Pediatric) Series table on your device below.
Downloaded file can only be opened and viewed on desktop version of Excel or OpenOffice, for the moment. Check How to open downloaded .XLS and .ODS files?

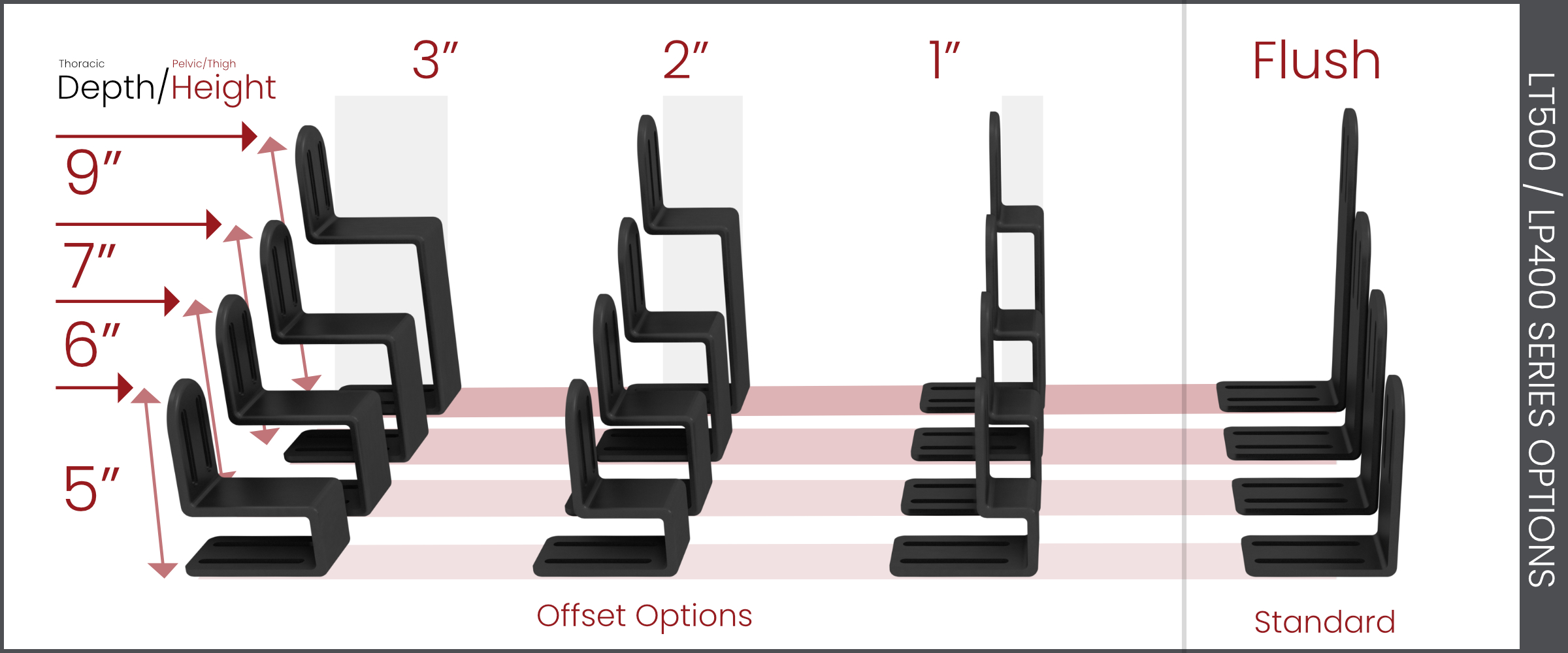

Offset Options
Offset Standard
| PN# | Description | Profile (A) | Offset Height (B) |
|---|---|---|---|
1in (2.54cm) Offset | |||
| Standard Profile | 5in (12.70cm) | 1 7/16in (3.62cm) | |
| Medium Profile | 6in (15.24cm) | 2 7/16in (6.16cm) | |
| High Profile | 7in (17.78cm) | 3 7/16in (8.70cm) | |
| Extended Profile | 9in (22.86cm) | 5 7/16in (13.78cm) | |
2in (5.08cm) Offset | |||
| Standard Profile | 5in (12.70cm) | 1 7/16in (3.62cm) | |
| Medium Profile | 6in (15.24cm) | 2 7/16in (6.16cm) | |
| High Profile | 7in (17.78cm) | 3 7/16in (8.70cm) | |
| Extended Profile | 9in (22.86cm) | 5 7/16in (13.78cm) | |
3in (7.62cm) Offset | |||
| Standard Profile | 5in (12.70cm) | 1 7/16in (3.62cm) | |
| Medium Profile | 6in (15.24cm) | 2 7/16in (6.16cm) | |
| High Profile | 7in (17.78cm) | 3 7/16in (8.70cm) | |
| Extended Profile | 9in (22.86cm) | 5 7/16in (13.78cm) | |
IMPORTANT NOTEDimension tables do not display properly on small screens. Download Offset Standard table on your device below.
Downloaded file can only be opened and viewed on desktop version of Excel or OpenOffice, for the moment. Check How to open downloaded .XLS and .ODS files?
Offset Hardware
Fixed offset hardware allows for a more advanced adjustment to reach client chest measurements based on the system structure and hardware specifications. With the additional offset option, it is more likely to achieve the adjustments needed for a proper seating positioning in a more affordable way. The same accessories and modifications are also available for the fixed hardware.
Niño (Pediatric) Offset
| PN# | Description | Profile (A) | Offset Height (B) |
|---|---|---|---|
1in (2.54cm) Offset | |||
| Standard Profile | 4in (10.16cm) | 1 1/2in (3.81cm) | |
| High Profile | 6in (15.24cm) | 3 1/2in (8.89cm) | |
IMPORTANT NOTEDimension tables do not display properly on small screens. Download Niño (Pediatric) Offset table on your device below.
Downloaded file can only be opened and viewed on desktop version of Excel or OpenOffice, for the moment. Check How to open downloaded .XLS and .ODS files?
Reverse Offset Options
Reverse Offset Option
| PN# | Description | Profile (B) | D |
|---|---|---|---|
1in (2.54cm) Offset | |||
| Standard Profile | 5in (12.70cm) | 1 3/8in (3.49cm) | |
| Medium Profile | 6in (15.24cm) | 2 3/8in (6.03cm) | |
| High Profile | 7in (17.78cm) | 3 3/8in (8.57cm) | |
| Extended Profile | 9in (22.86cm) | 5 3/8in (13.65cm) | |
IMPORTANT NOTEDimension tables do not display properly on small screens. Download Reverse Offset Option table on your device below.
Downloaded file can only be opened and viewed on desktop version of Excel or OpenOffice, for the moment. Check How to open downloaded .XLS and .ODS files?
This modification can be used to allow positioning the thoracic pad flush to the width of the back. Useful in cases where the client has outgrown the back and an affordable solution is desired.
Not Available for Pediatric Series
Mounting & Modifications
Mounting & Hardware Options
Track Mount
Tracks provide a way to easily adjust the laterals vertically. Stealth offers track nuts designed for frames that have existing tracks. Tracks and track nuts require a Planar or All Season Mount.
More About Track MountsTrack Options
You can find more information and options about Stealth Track Mounts here.
Or call 1(800) 965-9229
Pad Options
TWB Thoracic Pads
Stealth Products thoracic pads come standard with a black neoprene cover, 1in. (2.54cm) closed cell foam, and a strong aluminum base. Standard pads can be customized with any foam/upholstery available in our catalog. Custom pads can be modified with aluminum/wood/ABS base, custom sizing, and any foam/upholstery available.
