Head Solutions Hardware

Head Support Hardware

Stealth Head Support Hardware

Straight Style Hardware

Straight Hardware Information
  • Simple, straight forward, robust, and economical support pad mounting.
  • Easily achieved anterior, posterior, height, and rotational movements.
  • The multi-axis supplies an extra rotational point on the vertical mounting rod.
  • Both styles of mounting hardware come in 1 in. or 17mm versions to accommodate all mounting styles of our head support and positioning pads.

Link Style Hardware

Link Style Hardware Information
  • Multiple planes of adjustment allow critical adjustment of anterior, posterior, and angle.
  • Separate links isolate adjustment planes and angles.
  • Individual link adjustment achieves the most complex head support solutions.
  • Standard removal option or integrated push button that allows the hardware to flip down, eliminating misplacement.

HMO500 Multi-Axis Hardware

HMO500 Multi-Axis Hardware Information
  • Lightweight Hardware.
  • Easy to use and set up.
  • Height Adjustable, Angle, Tilt and Swivel.
  • Economical suppport pad mounting.

HMO500

HMO500: Head Support Universal Multi-Axis Bracket

HMO501

HMO501: Pediatric Headrest Multi-Axis Universal Mounting Bracket
1in Hardware

HMO400

HMO400: Standard Straight Mounting Hardware, 1in. Mounting Ball

HMO475-1

HMO475-1: Multi-Axis Hardware, 1in. Mounting Ball

TWB480-1

TWB480-1: Link Style Hardware, 1in. Mounting Ball

TWB485-1

TWB485-1: 1in. Linking Hardware with Square Tubing

TWB480-1FDM

TWB480-1FDM: Link Style Hardware with Flip Down, 1in. Mounting Ball

1 inch hardware facilitates mounting of the Comfort Plus, Tri Comfort Plus, Adjustable Comfort Plus, and Ottobock style head support and positioning pads.

17mm Hardware

HMO400-17

HMO400-17: Standard Straight Mounting Hardware, 17mm Mounting Ball

HMO475-17

HMO475-17: Multi-Axis Hardware, 17mm Mounting Ball

TWB480-17MM

TWB480-17MM: Link Style Hardware, 17mm Mounting Ball

TWB485-17mm

TWB485-17mm: 17mm Linking Hardware with Square Tubing

TWB480-17FDM

TWB480-17FDM: Link Style Hardware with Flip Down Mount, 17mm Mounting Ball

17 millimeter hardware facilitates mounting of the Pediatric Comfort Plus (CPN350), All Positioning, Combo, Stealth Ultra, and i2i style head support and positioning pads.

15mm Square Tubing

1 in. Ball Mount

HMO Series

HMO476-1: Multi Axis Hardware with 15 mm Square Tubing, 1in. Mounting Ball

TWB Series

TWB486-1

TWB486-1: 1in. Linking Hardware with 15mm Square Tubing

TWB486-1FDM

TWB486-1FDM: Linking Hardware with 15mm Tubing, 1in. Ball

17mm Ball Mount

HMO Series

HMO476-17: Multi Axis Hardware with 15mm Square Tubing, 17mm Mounting Ball

TWB Series

TWB486-17MM

TWB486-17MM: 17mm Linking Hardware with 15mm Square Tubing

TWB486-17FDM

TWB486-17FDM: Linking Hardware with 15mm Square Tubing, 17mm ball
Ottobock Select

Ottobock Hardware

Exclusive US distributed hardware from Ottobock
OBHSSMHMCB: Ottobock Head Support Mounting Hardware Multi-Axis Curved
Dimension_Diagram: Ottobock mounting kit dimension diagram
Set_Up_Diagram: Set up available range of adjustments
OBHSSMHMSB: Ottobock Head Support Mounting Hardware Multi-Axis Straight
Product Specific

Product Specific Head Solution Hardware

For Kid Kart Mobility

HMO400-KK

HMO400-KK: Headrest Mount for Kid Kart

TWB480-FDMKID

TWB480-FDMKID: Headrest Mount for Kid Kart with Flip Down
Tone Deflector

Tone Deflector Hardware Upgrade

Tone Deflector

: _half_HW_02_revB.png

The tone deflector mechanically absorbs high tone rearward and angular forces, quick impact loading, and diverts and deflects angled loading 10° in all directions.

For 1 in. ball

TD101

TD101: Tone Deflector for 1" Ball

For 17mm Ball

TD100

TD100: Tone Deflector for 17mm Ball
Back Mounts

Back Mounts

SBM306: Seat Back Mount 15mm Square Tubing

Back mount replacement unit for 15mm (0.59in) square tubing.

FDM350: Headrest Flip Down Mount with Otto Bock & Millers Style Bolt Pattern

Provides flip down for mounting hardware with 1/2in (12.70mm) square tubing.

HMO-OB: Mounting Hardware Offset Bracket for Curved or Flat Back

Track that provides horizontal adjustment to the head support to adapt to asymmetry.

SBM300U: Universal Headrest Adapter Plate

Universal adapter that provides a larger range of accommodation for various backrests.

SBM351: Seat Back Mount Interface Clamp for 1" Tubing

Interface clamp allows mounting to be fastened onto a 1in (2.54cm) crossbar.

Push Handles' Mount

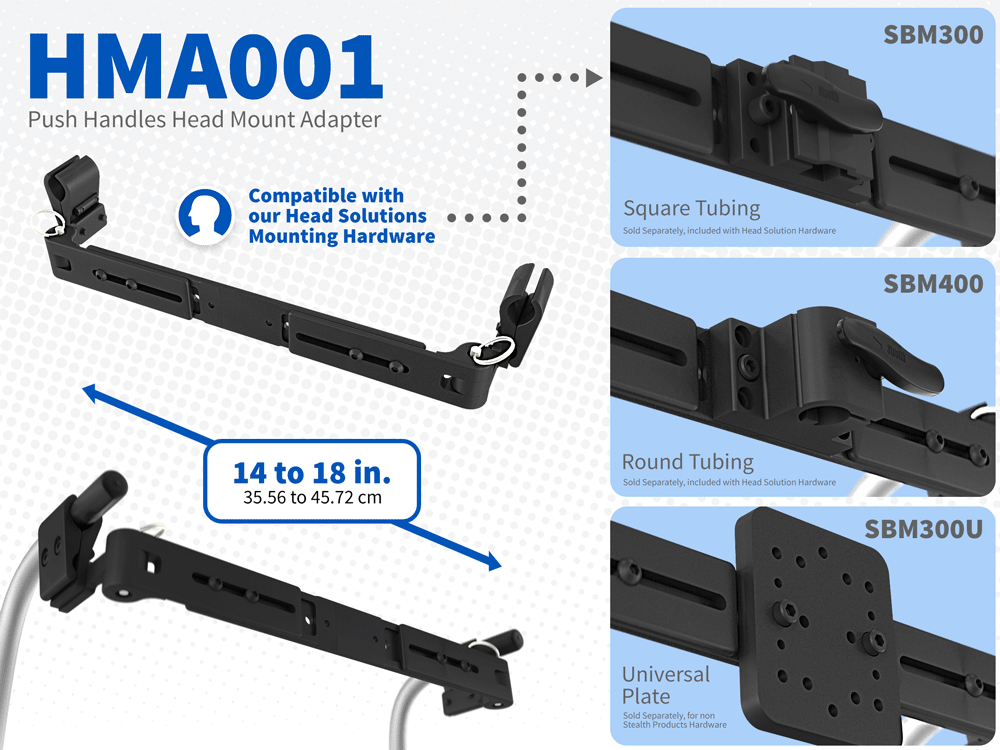

HMA001 - Push Handles Head Mount Adapter

HMA001: Push Handles Head Mount Adapter

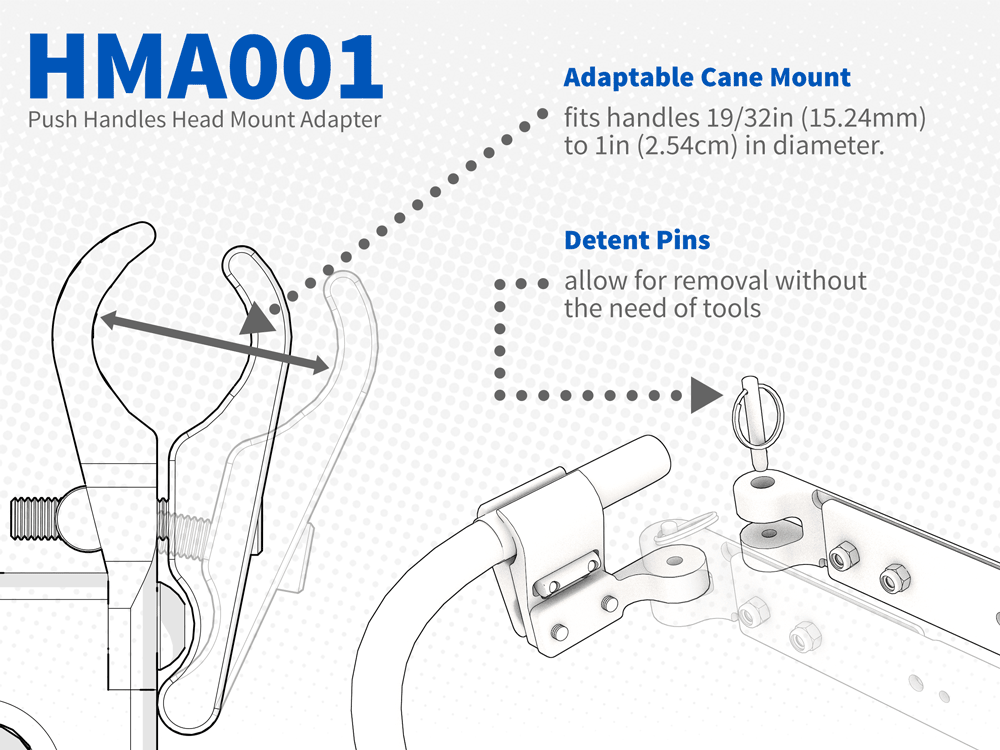

Main Features

  • Solid mounting surface compatible with Stealth SBM Accessories or any hardware with a 1 7/8in (4.75cm) Ottobock's hole pattern.
  • Attach head support independent of seating
  • 4in (10.16cm) of width adjustment
  • Fits handles 19/32in (15.24mm) to 1in (2.54cm) in diameter
  • Compatible with wheelchairs 14in (35.56cm) to 18in (45.72cm) wide
  • Detent Pins allow for no-tools-required removal
HMA001 - Compatible with our head mounting hardware

Head Solution Hardware Mount Adapter

The Hardware Mounting Adapter (HMA) is used with a back and/or seating systems which:

  • Do not offer a location for head support hardware
  • Do not offer the rigidity for head support hardware
  • Do not offer a location in the appropriate position for the end user's needs

Compatible With

SBM300

SBM300: Seat Back Mount (Ottobock Style Bolt Pattern)

SBM400

SBM400: Seat Back Mount for TWB480 Hardware

SBM300U

SBM300U: Universal Headrest Adapter Plate

The SBM300 and SBM400 are included with Head Solutions Mounting Hardware.

fits most push handle frames up to 1in wide. Detent Pins make it easy to remove without hardware.
