Overview
Stealth Positioning Pelvic Belts Overview
The pelvis is key to postural alignment as the position of the pelvis dictates the position of the trunk, head, and extremities. Pelvic stabilization is crucial for the individual to obtain optimal postural support, control, and ultimately, function. Incorrect positioning of the pelvis can lead to:
- Anterior Pelvic Tilt
- Posterior Pelvic Tilt
- Pelvic Elevation
- Pelvic Obliquity
- Pelvic Rotation
People using wheelchair seating are often unable to maintain an upright and aligned posture without external supports. Our Stealth Positioning Pelvic Belts help maintain the pelvis in a neutral position.
Stealth Positioning™ Documents -click to download-
2015 PRICELIST PRICE LIST [3.98Mb]
Pelvic Belts Features
Features
1in (2.54cm) to 2in (5.08cm) Webbing
1in (2.54cm), 1 1/2in (3.81cm), or 2in (5.08cm)
2pt Pad Sizes
2 Point Pad Sizes
SP Pelvic Belts 2 Point Pad Sizes
| Part Number | A | B | C | |
|---|---|---|---|---|
| XS | IFPB101 | 4 1/4in (10.80cm) | 1 3/4in (4.45cm) | 1 1/4in (3.18cm) |
| S | IFPB102 | 5 1/2in (13.97cm) | 1 3/4in (4.45cm) | 1 1/4in (3.18cm) |
| M | IFPB103 | 7 1/2in (19.05cm) | 2 1/2in (6.35cm) | 1 3/4in (4.45cm) |
| L | IFPB104 | 9 1/2in (24.13cm) | 2 3/4in (6.99cm) | 2 1/4in (5.72cm) |
| XL | IFPB105 | 11 1/2in (29.21cm) | 2 3/4in (6.99cm) | 2 1/4in (5.72cm) |
| Removable pad dimensions same as 2 point pads. | ||||
2pt Pelvic Belts
Stealth Positioning 2 Point Pelvic Belts
SP Pelvic Belts 2 Point
| Pull Type | A | B | C | Buckle | Pad Sizes |
|---|---|---|---|---|---|
| Single Pull | 32in (81.28cm) | 27in (68.58cm) | 1in (2.54cm) | PB | NP / XS |
| Single Pull | 32in (81.28cm) | 27in (68.58cm) | 1in (2.54cm) | SR | NP |
| Dual Pull | 24in (60.96cm) | 24in (60.96cm) | 1in (2.54cm) | PB | XS / S |
| Single Pull | 32in (81.28cm) | 27in (68.58cm) | 1 1/2in (3.81cm) | PB / SR | NP / M / L |
| Dual Pull | 24in (60.96cm) | 24in (60.96cm) | 1 1/2in (3.81cm) | PB / SR | M / L |
| Single Pull | 32in (81.28cm) | 27in (68.58cm) | 2in (5.08cm) | PB | NP / L / XL |
| Single Pull | 32in (81.28cm) | 27in (68.58cm) | 2in (5.08cm) | SR | L / XL |
| Dual Pull | 24in (60.96cm) | 24in (60.96cm) | 2in (5.08cm) | PB / SR | L / XL |
| PB Push Button • SR Side Release • NP Non-Padded • XS Extra Small • S Small • M Medium • L Large • XL Extra Large | |||||
IMPORTANT NOTEDimension tables do not display properly on small screens. Download SP Pelvic Belts 2 Point table on your device below.
Downloaded file can only be opened and viewed on desktop version of Excel or OpenOffice, for the moment. Check How to open downloaded .XLS and .ODS files?
SP Pelvic Belts 2 Point (Non Padded)
| 2 POINT NON-PADDED BELTS ( PUSH BUTTON ) | |
| IFPB5110 | Push Button, 1 in, Single Pull, Non-Padded |
| IFPB5210 | Push Button, 1.5 in, Single Pull, Non-Padded |
| IFPB5310 | Push Button, 2 in, Single Pull, Non-Padded |
| 2 POINT NON-PADDED ( SIDE RELEASE ) | |
| IFPB6110 | Side Release, 1 in, Single Pull, Non-Padded |
| IFPB6210 | Side Release, 1.5 in, Single Pull, Non-Padded |
IMPORTANT NOTEDimension tables do not display properly on small screens. Download SP Pelvic Belts 2 Point (Non Padded) table on your device below.
Downloaded file can only be opened and viewed on desktop version of Excel or OpenOffice, for the moment. Check How to open downloaded .XLS and .ODS files?

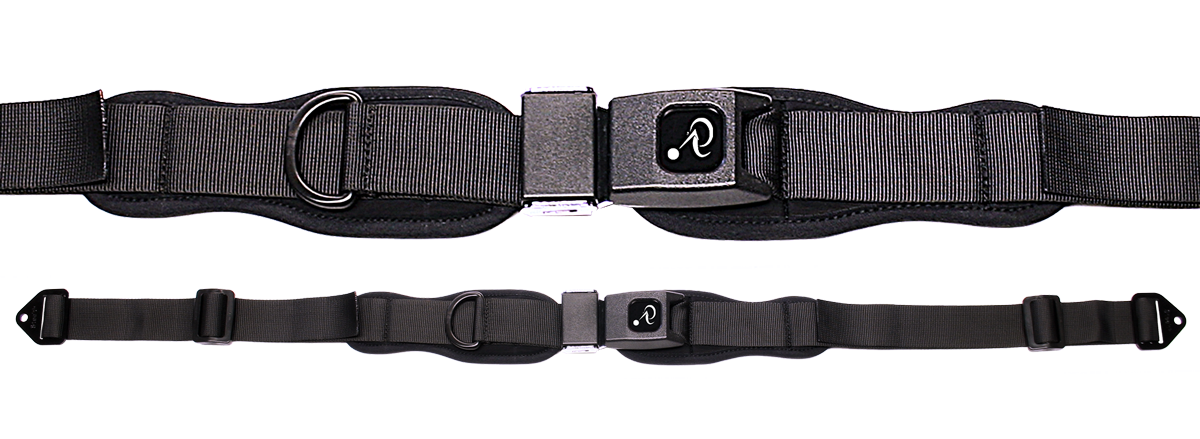

SP Pelvic Belts 2 Point (Padded Single Pull)
| 2 POINT PADDED BELTS ( SINGLE PULL ) | |
| IFPB5111 | Push Button, 1 in, Single Pull, Extra Small Pads (4.5 in) |
| IFPB5112 | Push Button, 1 in, Single Pull, Small Pads (5.5 in) |
| 1 1/2in Belts | |
| IFPB5213 | Push Button, 1.5 in, Single Pull, Medium Pads (7.5 in) |
| IFPB6213 | Side Release, 1.5 in, Single Pull, Medium Pads (7.5 in) |
| IFPB5214 | Push Button, 1.5 in, Single Pull, Large Pads (9.5 in) |
| IFPB6214 | Side Release, 1.5 in, Single Pull, Large Pads (9.5 in) |
| 2in Belts | |
| IFPB5314 | Push Button, 2 in, Single Pull, Large Pads (9.5 in) |
| IFPB6314 | Side Release, 2 in, Single Pull, Large Pads (9.5 in) |
| IFPB5315 | Push Button, 2 in, Single Pull, Extra Large Pads (11.5 in) |
| IFPB6315 | Side Release, 2 in, Single Pull, Extra Large Pads (11.5 in) |

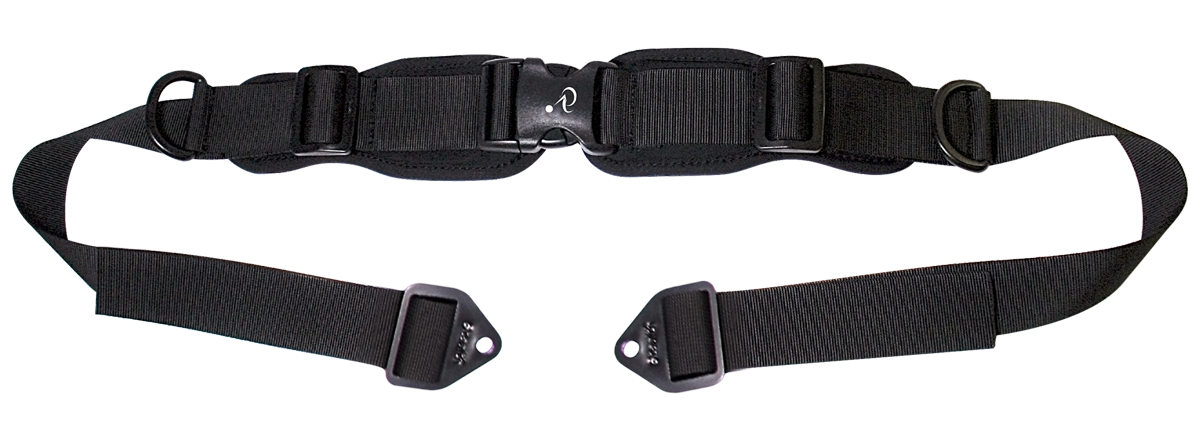

SP Pelvic Belts 2 Point (Padded Dual Pull)
| 2 POINT PADDED BELTS ( DUAL PULL ) | |
| IFPB5121 | Push Button, 1 in, Dual Pull, Extra Small Pads (4.5 in) |
| IFPB5122 | Push Button, 1 in, Dual Pull, Small Pads (5.5 in) |
| 1 1/2in Belts | |
| IFPB5223 | Push Button, 1.5 in, Dual Pull, Medium Pads (7.5 in) |
| IFPB6223 | Side Release, 1.5 in, Dual Pull, Medium Pads (7.5 in) |
| IFPB5224 | Push Button, 1.5 in, Dual Pull, Large Pads (9.5 in) |
| IFPB6224 | Side Release, 1.5 in, Dual Pull, Large Pads (9.5 in) |
| 2in Belts | |
| IFPB5324 | Push Button, 2 in, Dual Pull, Large Pads (9.5 in) |
| IFPB6324 | Side Release, 2 in, Dual Pull, Large Pads (9.5 in) |
| IFPB5325 | Push Button, 2 in, Dual Pull, Extra Large Pads (11.5 in) |
| IFPB6325 | Side Release, 2 in, Dual Pull, Extra Large Pads (11.5 in) |
4pt Pelvic Belts
Stealth Positioning 4 Point Pelvic Belts
SP 4 Point Belts
| A | B | C | D | Buckle | S |
|---|---|---|---|---|---|
32in (81.28cm) | 27in (68.58cm) | 20in (50.80cm) | 1in (2.54cm) | PB | XS |
32in (81.28cm) | 27in (68.58cm) | 20in (50.80cm) | 1 1/2in (3.81cm) | PB | S / M / L |
Part Numbers
| 4 POINT BELTS | |
| IFPB5141 | Push Button, 1 in, 4-Point, Extra Small Pads (4.5 in) |
| 1 1/2in Belts | |
| IFPB5242 | Push Button, 1.5 in, 4-Point, Small Pads (5.5 in) |
| IFPB5243 | Push Button, 1.5 in, 4-Point, Medium Pads (7.5 in) |
| IFPB5244 | Push Button, 1.5 in, 4-Point, Large Pads (9.5 in) |
IMPORTANT NOTEDimension tables do not display properly on small screens. Download Part Numbers table on your device below.
Downloaded file can only be opened and viewed on desktop version of Excel or OpenOffice, for the moment. Check How to open downloaded .XLS and .ODS files?
Part Numbers
| 4 POINT LINEAR STYLE BELTS | |
| IFPB5145 | Push Button, 1 in, 4-Point, Extra Small Pads (4.5 in) |
| 1 1/2in Belts | |
| IFPB5246 | Push Button, 1.5 in, 4-Point, Small Pads (5.5 in) |
| IFPB5247 | Push Button, 1.5 in, 4-Point, Medium Pads (7.5 in) |
| IFPB5248 | Push Button, 1.5 in, 4-Point, Large Pads (9.5 in) |
