Diego System Overview
Once Upon a Time
The Diego System was inspired by our ever changing industry and the need for pediatric seating system designed for that market.
Through the years we have discovered that the pediatric end user needs a modular growth seating system.
We began to look into how we could incorporate sound positioning features into a next generation seating system that was not just a scaled down version of an adult seat but one designed specifically for a smaller user.
The Inspiration
One of our customers from Latin America has helped us through this journey.
Diego Martin Rios has been a customer of Stealth's for over ten years and has a high focus on pediatrics. When discussing the future of seating with Diego he pointed out key properties in a child's development.
- Modularity: if we cannot keep up with a child's growth we would struggle in this space.
- Innovation: We needed to focus on our strengths in design and unique function.
System Features:
- Modular System
- Adjustable Growth
- Universal Mounting
- Minimalistic Design
- Coolcore® Covers
Modular Systems:
Pediatric custom seating reimagined:
A: Diego Head Support System B: Diego Contoured Back System C: Diego Contoured Seat SystemDocuments:
For order form to function as expected it requires Adobe Acrobat DC Reader (Desktop)
Our design team has been excited to work on this project and we are excited to bring to you the all new Diego System!
Pelvic Solutions
Diego Seat Overview
Diego Seat System Features:
In seating pelvic support is the key factor for proper positioning, the Diego Contoured Seat helps promote a more centralized posture and a good start for better positioning.
- Minimalistic Design and Simple Ordering
- Expandable Frame Adaptability
- Easy Set Up
- Easy Maintenance
- On-Demand Configuration
Trunk Solutions
Diego Contoured Back Overview
Diego Contoured Back System
Diego Back frame is made from lightweight aluminum with a black powder-coated finish. Comes already configured to receive head support hardware and seat-to-back bracket to be attached together with the Diego Seat.
- Adjustable Contoured Back
- Growth Adaptability
- Easy Set Up
- Easy Maintenance
- On-Demand Configuration
Mounting Hardware

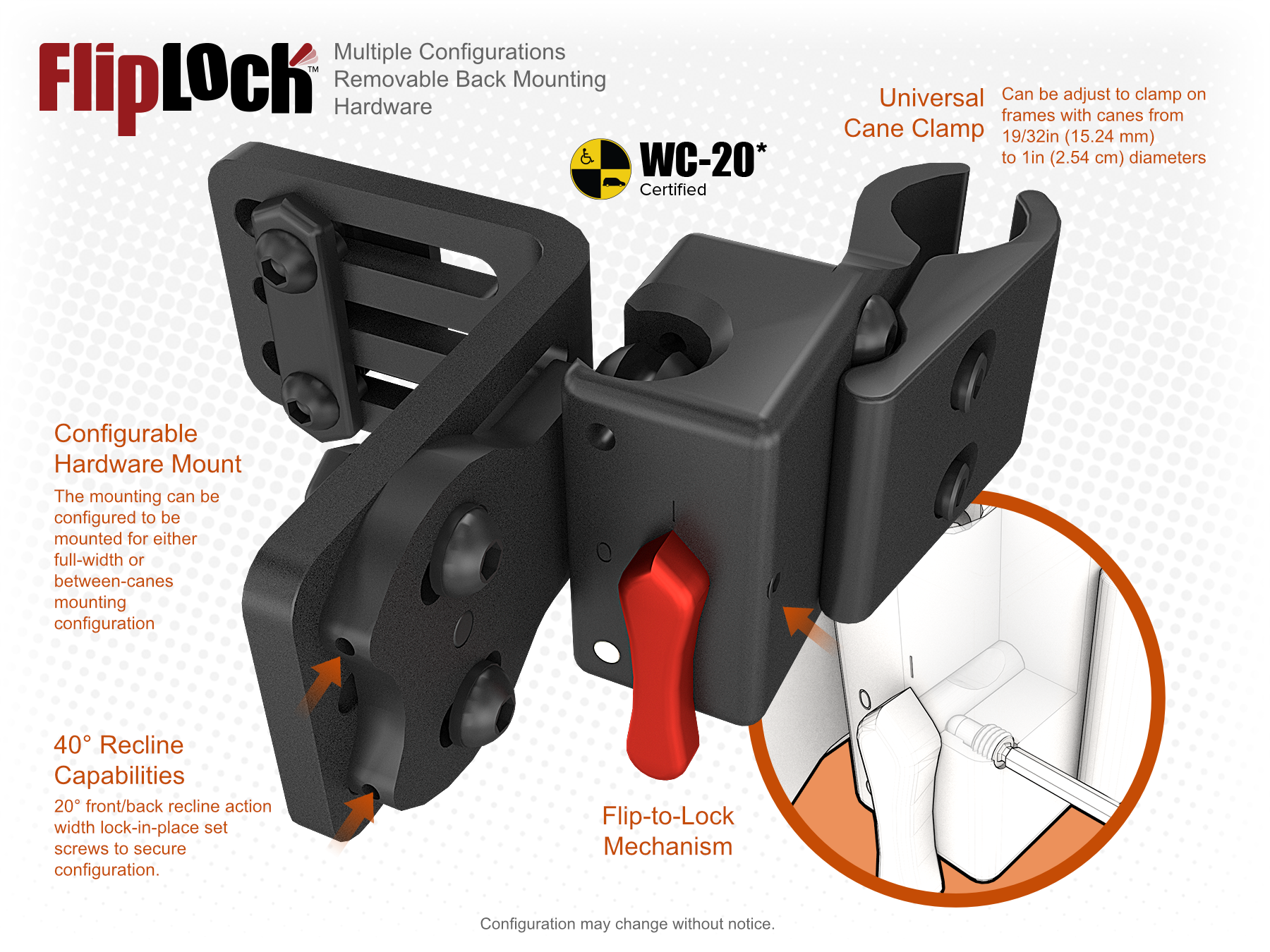

New! FlipLock™ Versatile Back Mounting Hardware

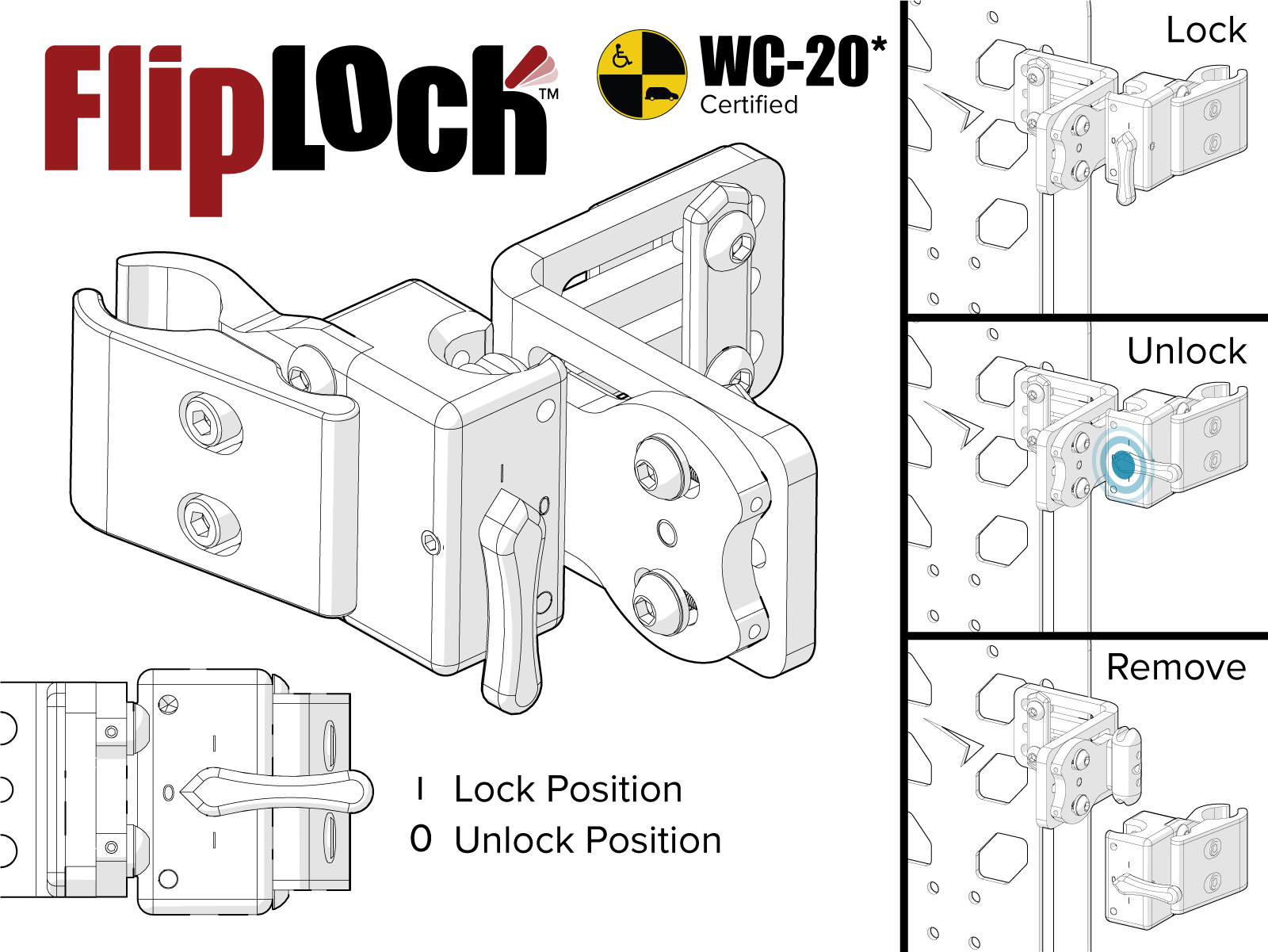

How does the FlipLock work?
The FlipLock is a versatile removable mount that allows multiple configurations and the ability to easily remove the backrest then lock into place with in a flip of a lever.
Strong and secure, when mounted the seating system is firmly locked into place.
Easy to Remove/Lock
The FlipLock comes with a red anodized aluminum lever for visual reference. Flip resistance can be adjusted easily with a set screw.
When unlocked the back can be easily removed and replaced when needed for transporting or traveling.
The mounting hardware has been crash tested with the Diego System which makes it WC-20 certified. See WC requirements at the bottom of this page.
Easy to Set Up

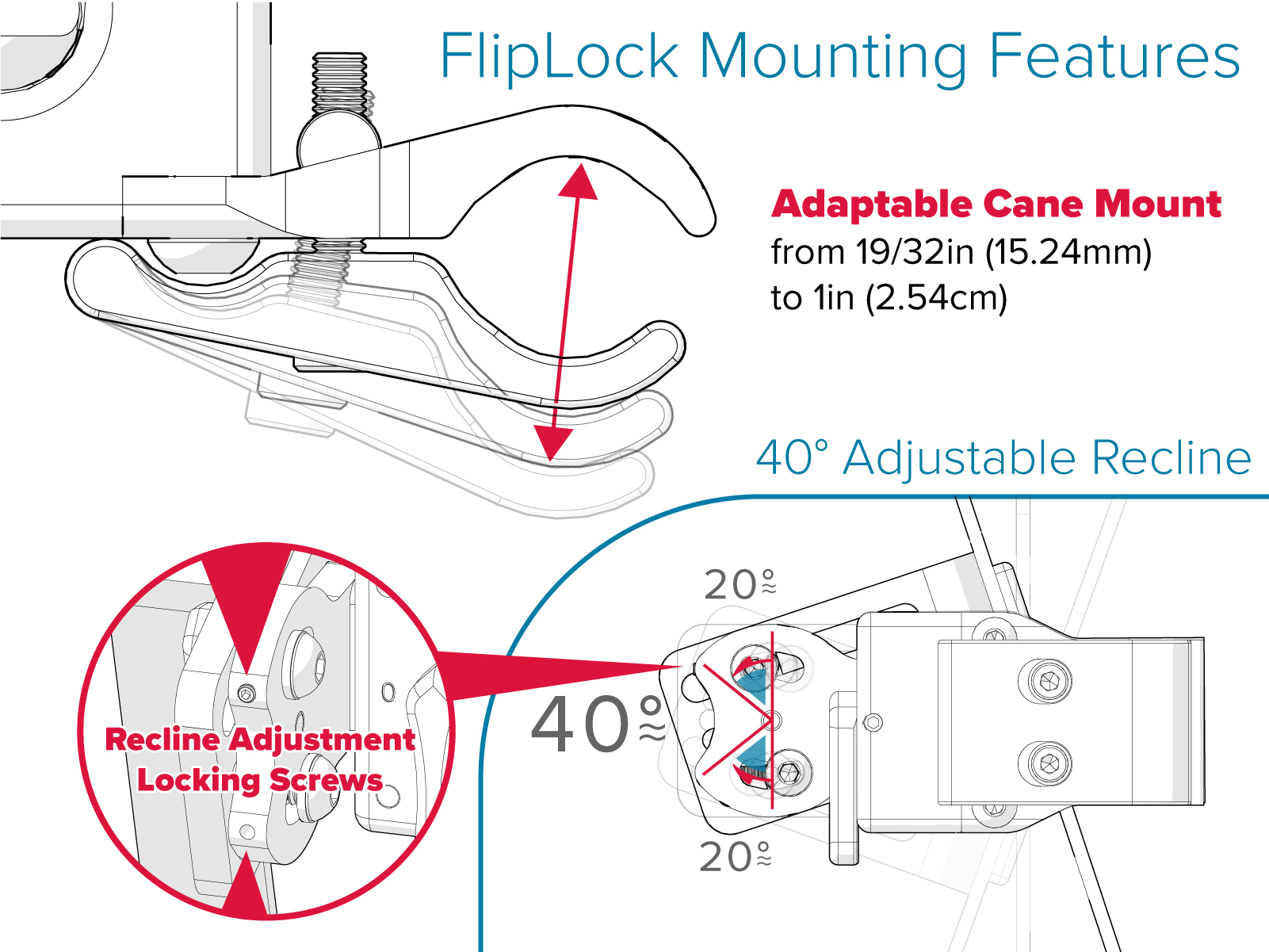

The cane clamp provides the ability to clamp the hardware in most of the wheelchair frames in the market. It can be adjusted to fit frames with canes from 19/32in (14.99mm) to 1in (2.54cm) diameters.
Additionally it offers 40° of recline for a more comfortable and personalized set up, 20° front or back respectively.
Head Solutions
Diego Head Support Solutions
Diego Head Solutions Features
- Most Popular Head Support
- Removable Pad for Maintenance
- Coolcore® Cover
- Multi-Axis Universal Head Support Mount
- On-Demand Configuration
Coolcore®

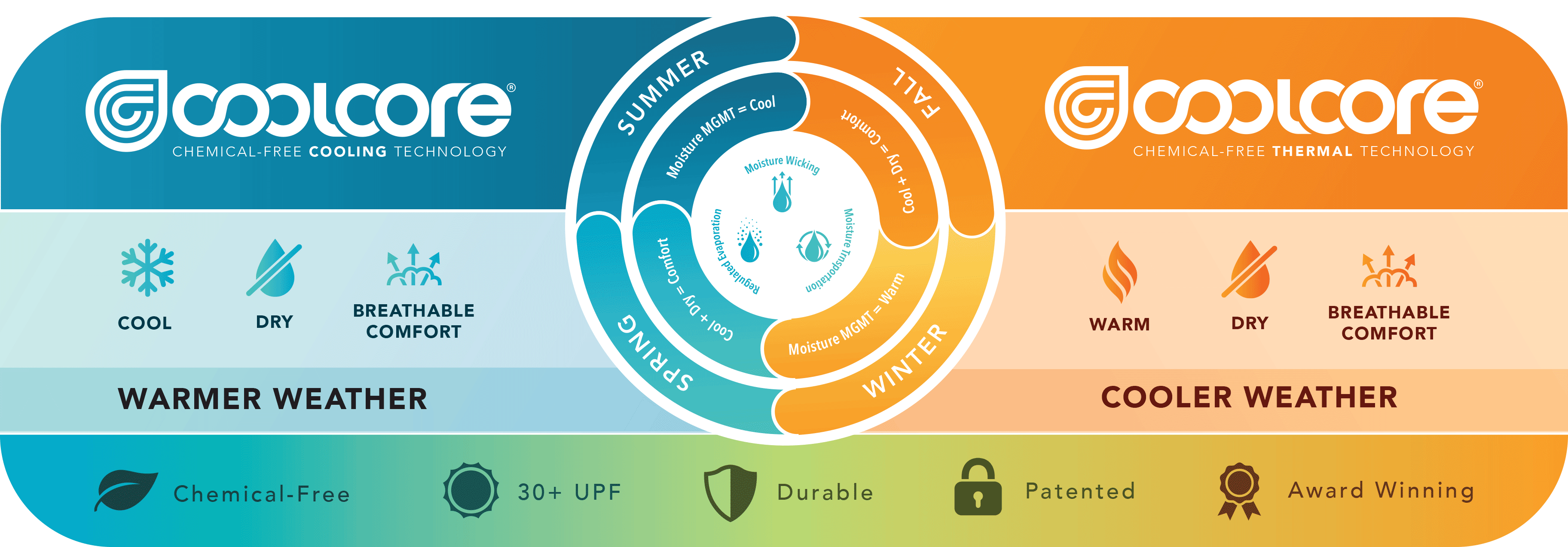

Coolcore Technology
What is Coolcore®?
- Year Round Temperature Control
- Chemical Free
- 4-Way Stretch
- Patented Technology
- Better Cooling Ability
- Durable - Last Longer
- Protects from Sun's Harmful Rays (UPF)
While the other makers of cooling fabrics use a number of chemicals to enhance wicking, transportation and evaporation, Coolcore fabrics are chemical free. To make that possible, we changed the essence of cooling fabric technology right down to its very core.
from Coolcore Website

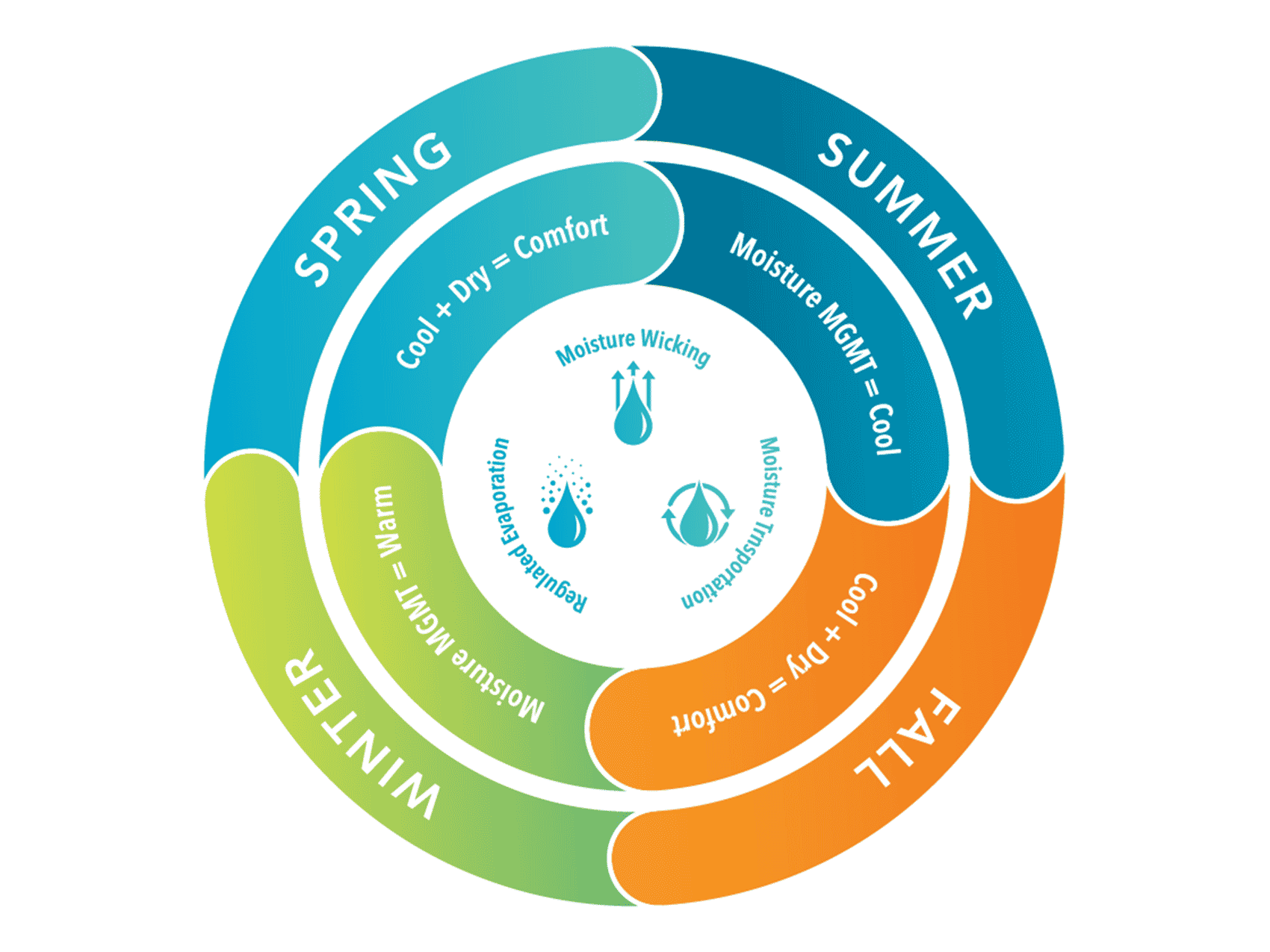

Year-Round Regulation
A great base layer in summer is a great base layer in winter.
Stealth's Cushions Thermoregulation line is not a new technology, but a new application. The Coolcore Technology starts with cooling but the patented yarn technology makes for a better textile that provides year‑round temperature regulation.
About Coolcore
Coolcore is a research proven performance fabric technology that adapts to its environment and regulates temperature by managing heat and moisture. The proprietary construction helps manage and distribute moisture quickly throughout the fabric to enhance the evaporation and drying time.
Chemical Free Fabric Technology
Normally other brand fabrics use topical chemicals that not only can be harmful to your skin, but after only a few washes, the cooling properties of the product are no longer effective. The Coolcore cooling technology is built into the fabric fibers, preventing any decline in the performance and keeping it's cooling properties. Coolcore patented technology allows for a controlled evaporative process that keeps you cool, dry and comfortable in any condition.
Fabric Benefits
Research driven, patented fabrics from Coolcore are chemical-free and yield remarkable benefits. They cool better, last much longer and offer protection from the suns harmful rays (UPF)
Important Notes
Important Notes
[*] WC20 Requirements
- WC20 transit hardware requires: WC18 Restraint, WC19 Base and WC20 Seat/Back.
- Per RESNA WC-4:2012/ISO 16840. For more information visit official site.
[**] HCPCS Codes
- Applicable in the United States and its territories Only
- HCPCS codes provided should not be considered as legal advice and do not guarantee reimbursement.
- DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement.
